£42.70
Orange Adjustable Opening 80-320mm Size 3t Lifting Vertical Clamp
-
Brand:
CNCEST
-
Product Code:
GYKNEH-000700
-
Availability:
In Stock
Free Fast Shipping:
On all orders
Build to Last
Premium carbon steel, polishing, and plastic spraying processes make the whole product hard, corrosion-resistant, abrasion-resistant, oxidation-resistant, not easy to rust, and keep it beautiful and practical for a long time.
Good Performance
High-quality materials and stable structure make the product able to withstand a tensile strength of up to 6613.87 lbs, making it easy to lift a wide variety of beams and greatly improving work efficiency.
Meet Your Needs
It has a large opening range (3.15-12.6 inches), which makes it easy to clamp different thicknesses of beams for a wider range of applications to meet your different needs.
Easy to Use

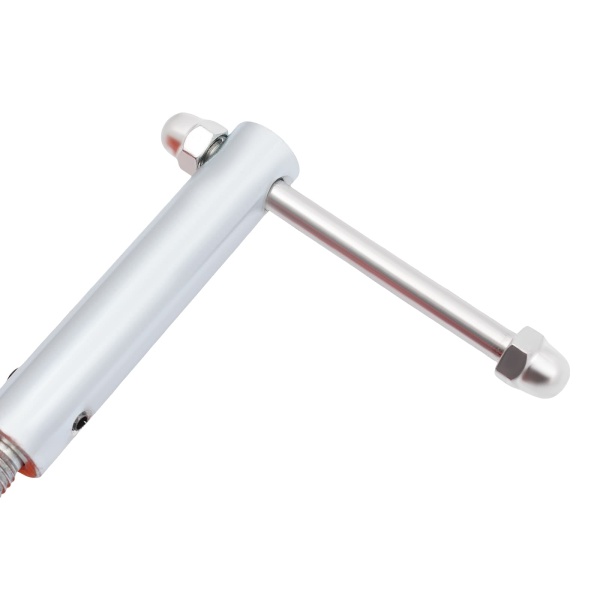

You just need to rotate the screw shaft counterclockwise to loosen the clamp, place it on the lower edge of the I-beam, and then rotate the screw shaft clockwise to fix it on the I-beam, which is simple and convenient.
User-friendly Design
Built-in connection points provide high stability and reliable use. The center threaded shaft is easily secured and prevents loosening. The clamping jaws are designed to spread the load away from the edge of the crossbeam flange, minimizing stress on the crossbeam.
Bright Appearance
The eye-catching orange color can be contrasted with other parts and tools for easy identification and operation.

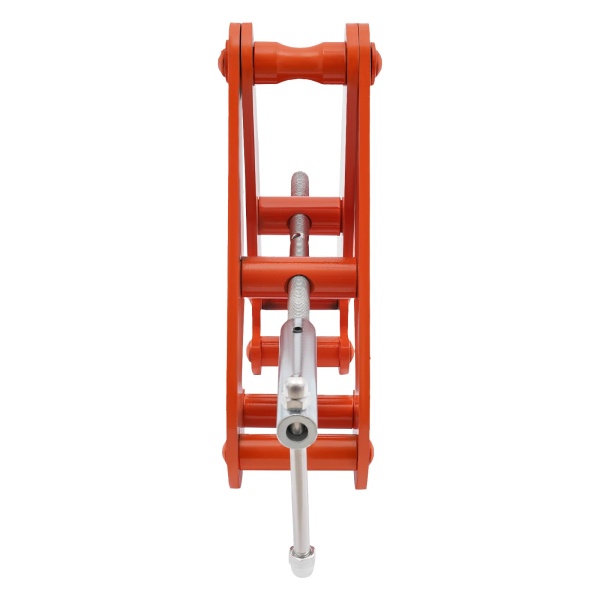

Grooved Spindle
It keeps the lifting position in the middle of the load, thus increasing stability.
Carrying Points
Five carrying points are pressed by the machine, with a small height and low center of gravity, which is labor-saving and convenient.

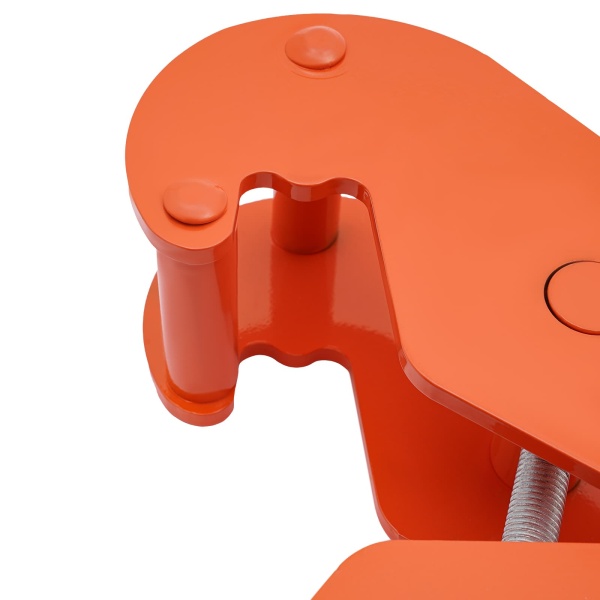

Arcs Shape
The rounded and smooth edges not only add to the aesthetics of the product but also improve the safety of use.

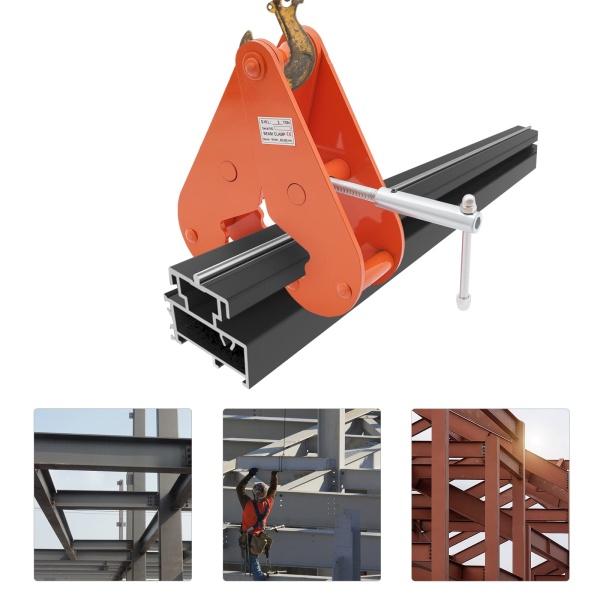

Application

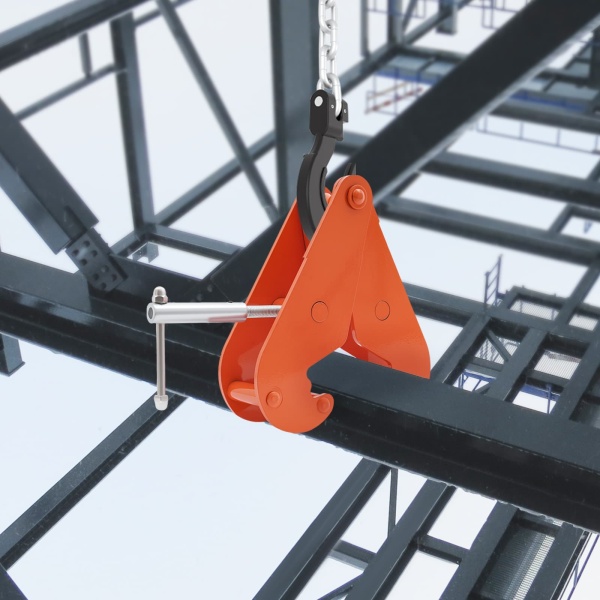

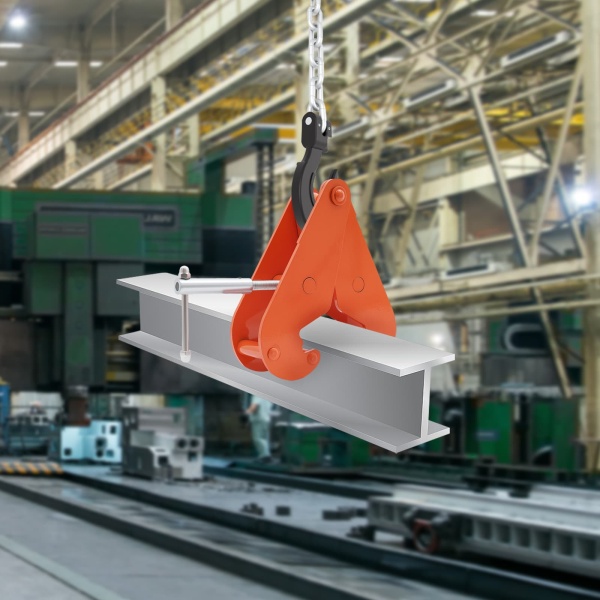

This product is suitable for factories, warehouses, construction sites, buildings, ports, cargo lifting, railroad construction, and industrial and mining enterprises. It is widely used for lifting and connecting I-beams. The small size of this product makes it suitable for beams with low base heights. You can use it to hang hammock swings or to lift cast iron intermediates for building or repairing machines.
Specifications
-
Color:
Orange
-
Style:
Modern
-
Material:
Carbon Steel
-
Process:
Polishing, Plastic Spraying
-
Assembly Required:
No
-
Tensile Strength:
3T/ 6613.87 lbs
-
Opening Size:
80-320mm/ 3.15-12.6 in
-
Gross Weight:
9.6kg/ 21.16 lbs
-
Package Size:
40*37*16 cm/ 15.75*14.57*6.3 in

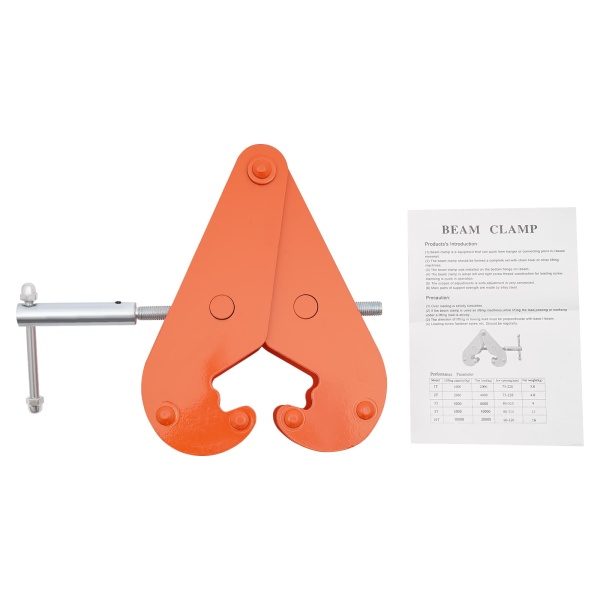

Package Included
-
1* Lifting Clamp
-
1* English Manual
Specifications
| Color |
Orange |
| Style |
Modern |
| Material |
Carbon Steel |
| Process |
Polishing, Plastic Spraying |
| Assembly Required |
No |
| Tensile Strength |
3T/ 6613.87 lbs |
| Opening Size |
80-320mm/ 3.15-12.6 in |
| Gross Weight |
9.6kg/ 21.16 lbs |
| Package Size |
40*37*16 cm/ 15.75*14.57*6.3 in |
Product Tips
Notes:
1. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2. Please note that the load capacity applies only to vertical loads.
3. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
