£219.90

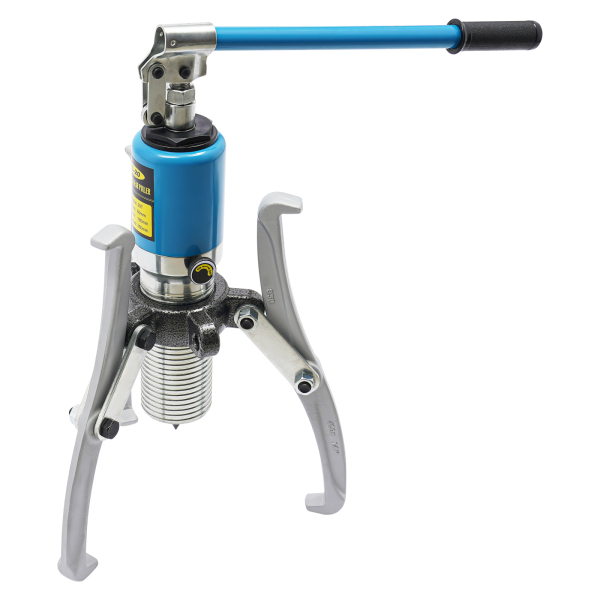

20T Hydraulic Gear Puller Kit, Wheel Bearing Puller Set
-
Brand:
CNCEST
-
Product Code:
QCJLLP-000000
-
Availability:
In Stock
Sturdy and Durable
Made of alloy steel with a forging process, this product is corrosion-resistant, wear-resistant, and durable, ensuring your long-term use.
Wide Application

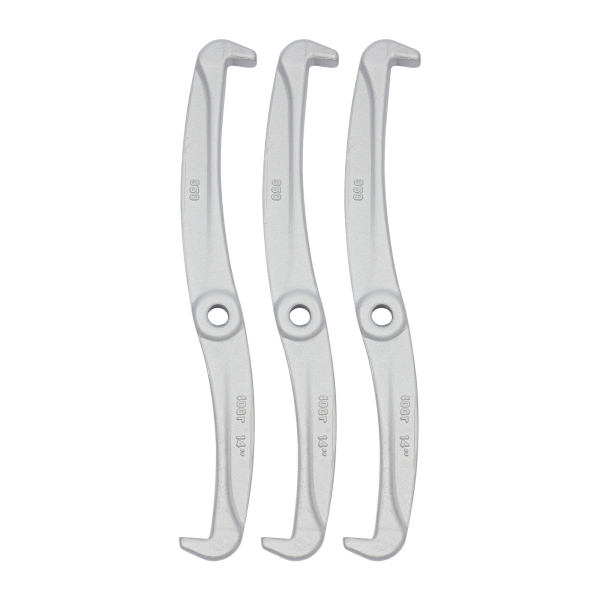

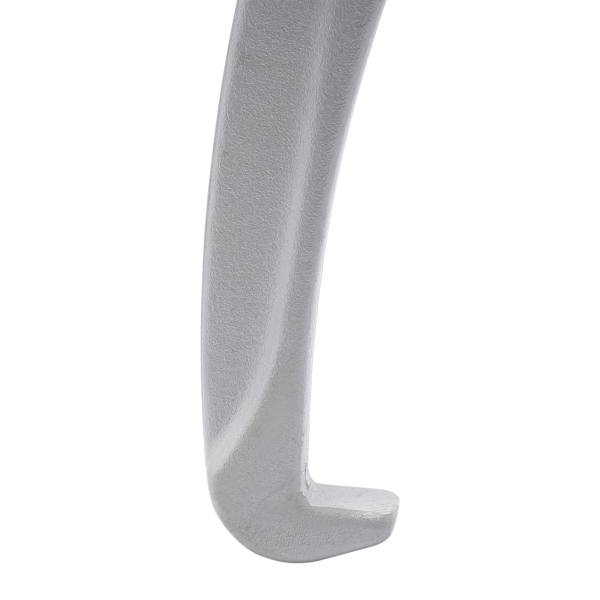

3 jaws or 2 jaws can be easily interchanged, and they can be used vertically and horizontally without being limited by the venue, suitable for different scenarios.
Thoughtful Design

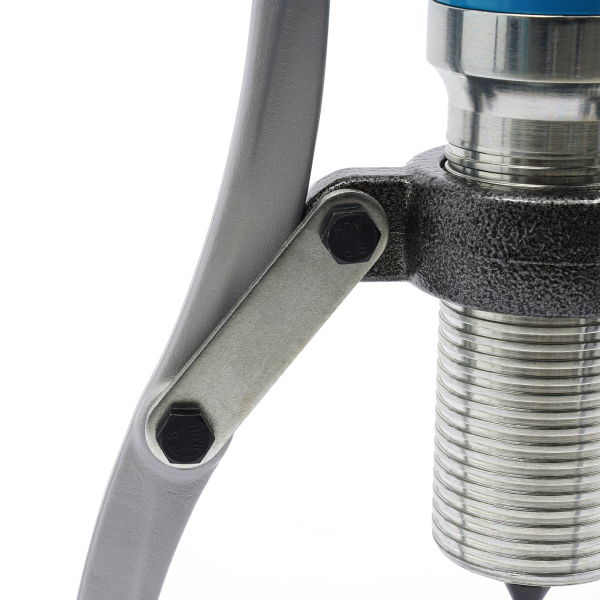

The thickened elastic top pin allows you to accurately locate the center. The pump body formed in one go is smooth and seamless, so you don't have to worry about breakage or oil leakage. The long handle with anti-slip rubber provides you with a comfortable grip and is not tiring after long-term use.
Easy to Use
You just need to insert the handle into the top of the pump body and move the handle up and down to start working, which is easy. The pump head is very flexible and can rotate 360°.
Protective Packaging
The bubble bag provides comprehensive protection for products to ensure that it is fully delivered to you to the greatest extent possible.
Easy to Clean
It has a smooth surface and a simple structure, so you only need to wipe the dust with a towel after use.
Oil Return Switch
When applying pressure, tighten it in the ON direction, and when releasing pressure, tighten it in the OFF direction.
Carrying Case
It allows you to store this product and easily carry it to the place you need.
Thoughtful Design
The thickened elastic top pin allows you to accurately locate the center. The pump body formed in one go is smooth and seamless, so you don't have to worry about breakage or oil leakage. The long handle with anti-slip rubber provides you with a comfortable grip and is not tiring after long-term use.
Application
It is suitable for factories, repair sites, railways, vehicles, etc. It is used to disassemble truck wheels, sprockets, wheel bearings, pulleys, shaft sleeves, rotors, car axles, gears, etc.

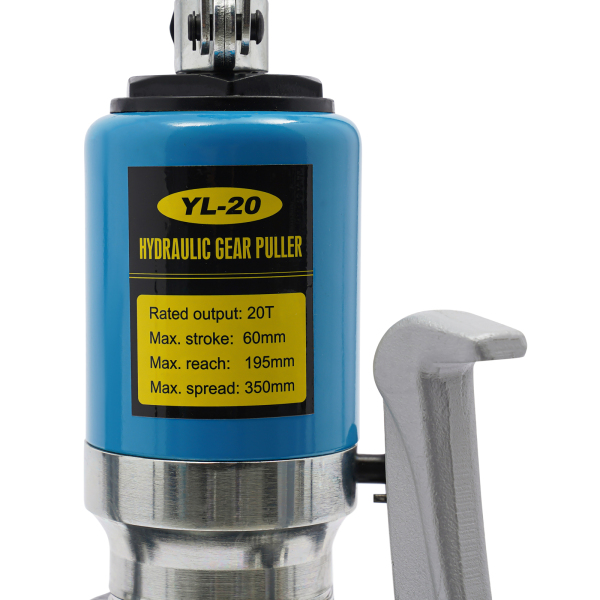

Specifications
-
Style:
Modern
-
Color:
Light Blue
-
Material:
Alloy Steel, Rubber
-
Process:
Forging
-
Assembly Required:
Yes
-
Model:
YL-20
-
Max. Stroke:
60mm/2.36in
-
Max. Reach:
195mm/7.68in
-
Max. Spread:
350mm/13.78in
-
Product Size(L*H):
50*51cm/19.69*20.08in
-
Handle Length:
41cm/16.14in
-
Package Size:
56*28*11cm/22.05*11.02*4.33in
-
Rated Output:
20T/44092.45lbs
-
Gross Weight:
16.5kg/36.38lbs
Package Included:
-
1* Pump Body
-
1* Handle
-
3* Jaws
-
1* Pull Ring
-
6* Screws
-
6* Pulling Tabs
-
1* Carrying Case
-
1* English Manual
Specifications
Style |
Modern
|
Color |
Light Blue
|
Material |
Alloy Steel, Rubber
|
Process |
Forging
|
Assembly Required |
Yes
|
Model |
YL-20
|
Max. Stroke |
60mm/2.36in
|
Max. Reach |
195mm/7.68in
|
Max. Spread |
350mm/13.78in
|
Product Size(L*H) |
50*51cm/19.69*20.08in
|
Handle Length |
41cm/16.14in
|
Package Size |
56*28*11cm/22.05*11.02*4.33in
|
Rated Output |
20T/44092.45lbs
|
Gross Weight |
16.5kg/36.38lbs |
Product Tips
Notes:
1.Please read the English manual carefully before use.
2.Please note that the rated output data is calculated using a calculation formula based on the size data of the length and diameter of the oil cylinder, so the rated output may have deviations and is only for reference.
3.The effective distance of the piston starting rod of the hydraulic puller is only 1.97 inches, so the extension distance should not be greater than 1.97 inches during use.
4.If you want to retract the piston activation rod, you only need to slightly loosen the oil return valve rod in a counterclockwise direction, and the piston activation rod will gradually retract.
5.Before use, the hydraulic puller of the corresponding tonnage should be selected according to the outer diameter of the object to be pulled, saw, and load force, and avoid damage caused by overloading.
6.The hydraulic puller uses (GB443-84) N15 mechanical oil (not included) at 23-113°F and (GB442-64) synthetic spindle oil (not included) at -4-41°F.
