£84.00

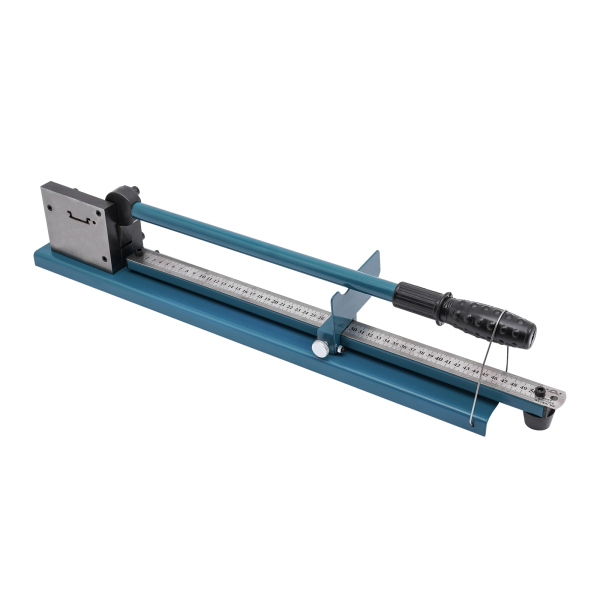

Rail Cutter Aluminum Rail Cutting Machine Manual Guide Rail Cutter with Measuring Ruler for Cutting Aluminum Rail
-
Brand:
CNCEST
-
Product Code:
JZONPS-000100
-
Availability:
Out Of Stock
Free Fast Shipping:
On all orders
Long Service Life
This product is made of 40CR, 45# steel, and A13 steel, which is hard, tough, and strong, so you can use it for a long time.
Precise & Efficient Cutting

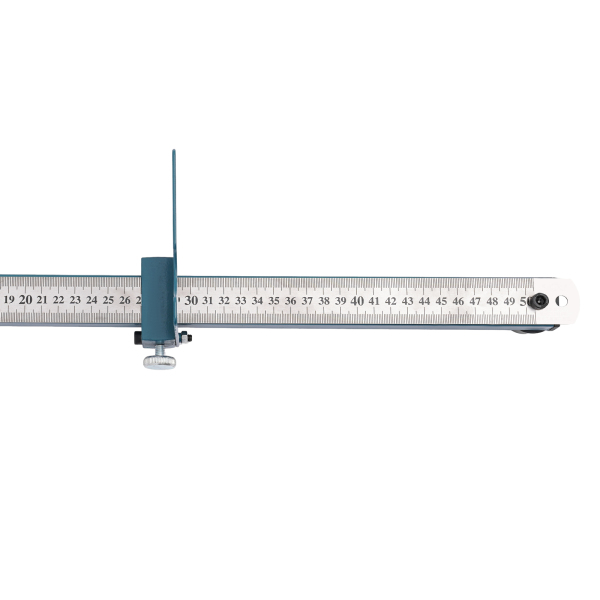

The rail cutter comes with a special ruler that allows you to quickly adjust the cutting size and cut most aluminum rails with ease. In addition, the smooth and sharp cutting edges make for a neat and smooth cut, which saves time and effort and ensures that cutting tasks are more efficient.
Practical Tool
The rail cutter provides a solution for power, construction, and completing other tedious cutting tasks, making work easier and more efficient.
Safe to Use

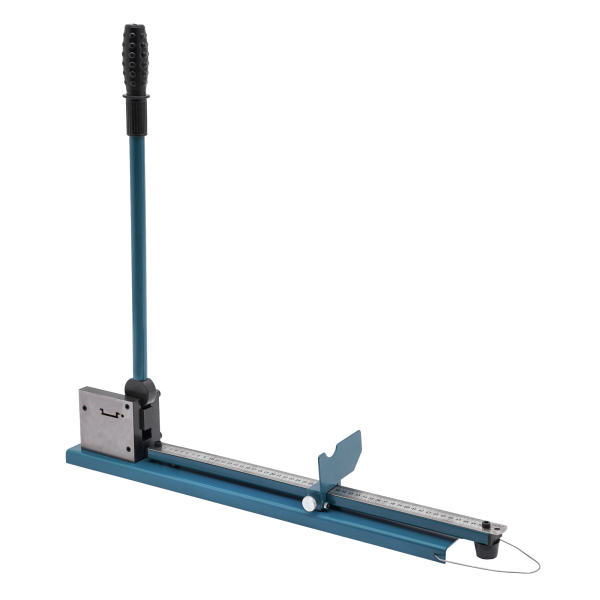

The handle adopts the principle of leverage and is equipped with non-slip rubber, which is comfortable to grip and not easy to slip, ensuring the safety of use.

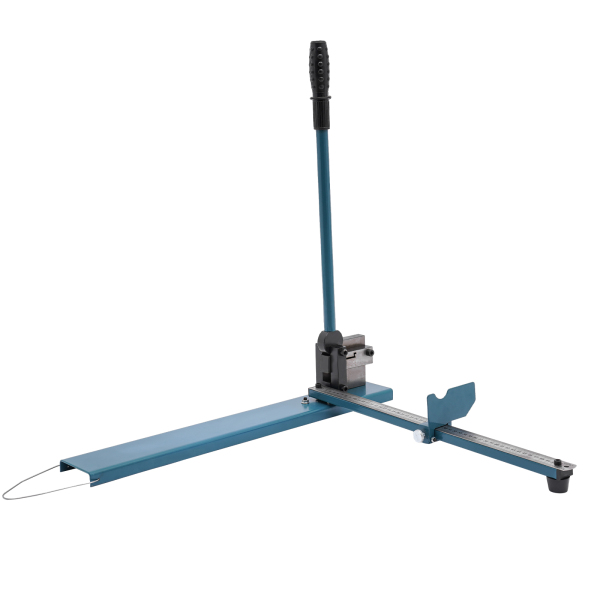

Simple Operation
You just need to push the slider, set the cutting length, insert the guide, and press the handle to cut and get the guide you need.
.jpg?x-oss-process=image/resize,w_600)
Wide Cutting Range
With a cutting width of 13.8 to 15.7 inches and a cutting thickness of up to 0.8mm, this product has a wide cutting range and can cut most aluminum rails
_proc.jpg?x-oss-process=image/resize,w_600)

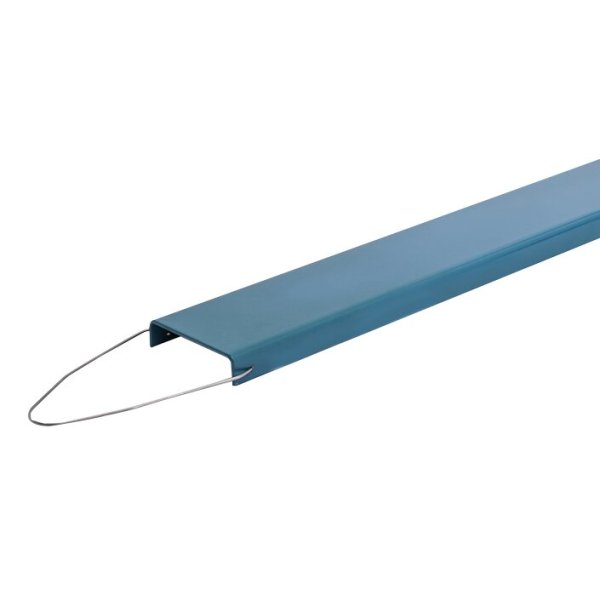

Iron Wire
It holds the handle in place to prevent shifting and help you store it better.
.jpg?x-oss-process=image/resize,w_600)

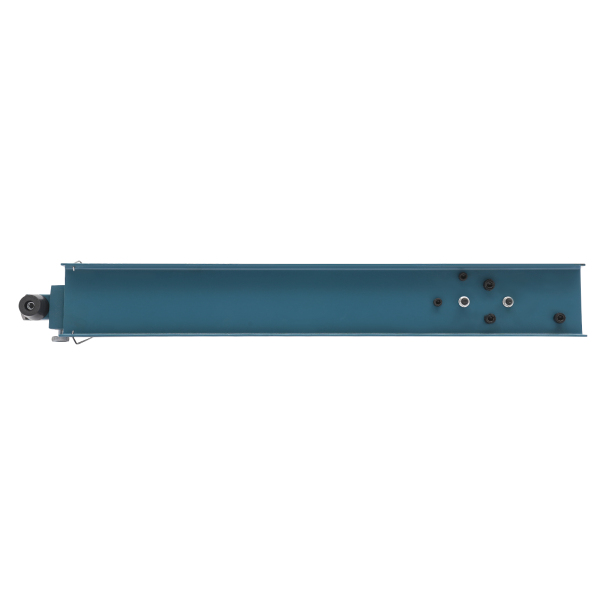

Parallel Base
The flat base design at the bottom makes this product more stable and not easy to fall and shake.
.jpg)
Application
It is suitable for cutting aluminum guide rails and is also used in the power and construction industries.
.jpg)
Specifications
-
Model:
DC-35
-
Material:
40CR, 45# Steel, A13 Steel , Iron Wire, Rubber
-
Color:
Blue
-
Cutting Object:
Aluminum Rail
-
Cutting Model:
C 45
-
Work Form:
Manual
-
Cutting Width:
35-40cm/13.8-15.7in
-
Cutting Height:
7mm/0.3in
-
Cutting Thickness:
≤ 0.8mm/0.03in
-
Product Size:
-
Handle Length:
64cm/25.in
-
Folded Size:
65*8.5*13.5cm/25.6*3.3*5.3in
-
Unfolding Size:
60*8.5*64cm/23.6*3.3*25.2in
-
Gross Weight:
5.5kg/12.13lbs
-
Net Weight:
4.5kg/9.9lbs
-
Package Size:
70*17*10cm/27.6*6.7*3.94in
.jpg?x-oss-process=image/resize,w_600)

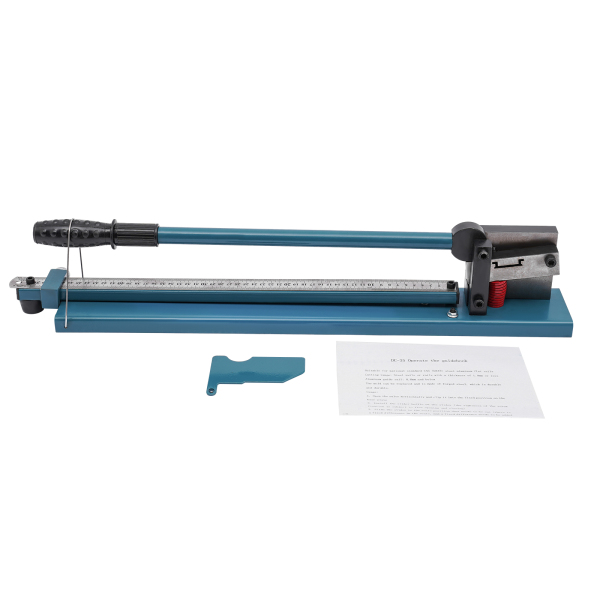

Package Included:
-
1*Rail Cutter
-
1*English Manual
-
All Accessories for Installation
Specifications
| Model |
DC-35
|
| Material |
40CR, 45# Steel, A13 Steel , Iron Wire, Rubber
|
| Color |
Blue
|
| Cutting Object |
Aluminum Rail
|
| Cutting Model |
C 45
|
| Work Form |
Manual
|
| Cutting Width |
35-40cm/13.8-15.7in
|
| Cutting Height |
7mm/0.3in
|
| Cutting Thickness |
≤ 0.8mm/0.03in
|
| Product Size |
|
| Handle Length |
64cm/25.in
|
| Folded Size |
65*8.5*13.5cm/25.6*3.3*5.3in
|
| Unfolding Size |
60*8.5*64cm/23.6*3.3*25.2in
|
| Gross Weight |
5.5kg/12.13lbs
|
| Net Weight |
4.5kg/9.9lbs
|
| Package Size |
70*17*10cm/27.6*6.7*3.94in |
Product Tips
How to Use:
1. Rotate the ruler 90° to fix it, move the slider to the length to be cut, and turn the screw to fix it.
2. Insert the guide rail from the left side and push it to the fixed position of the slider.
3. Hold the handle and press down to cut the guide rail.
4. After the guide rail is cut, gently open the handle and check the length by measuring it with a ruler.
Notes:
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
