£74.99
£90.00

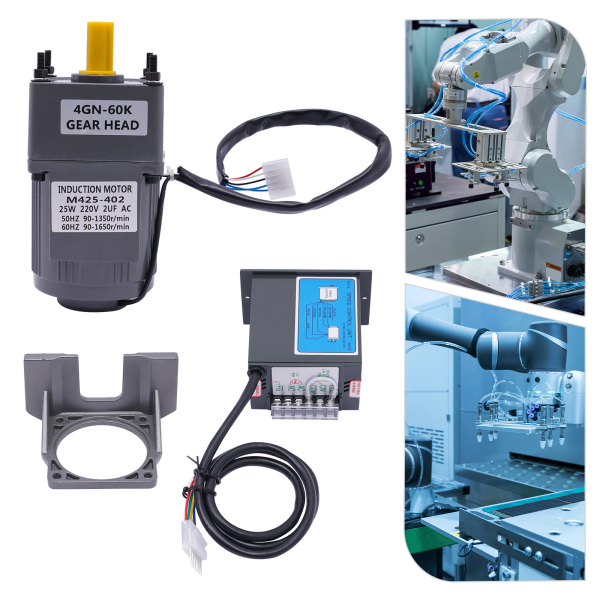

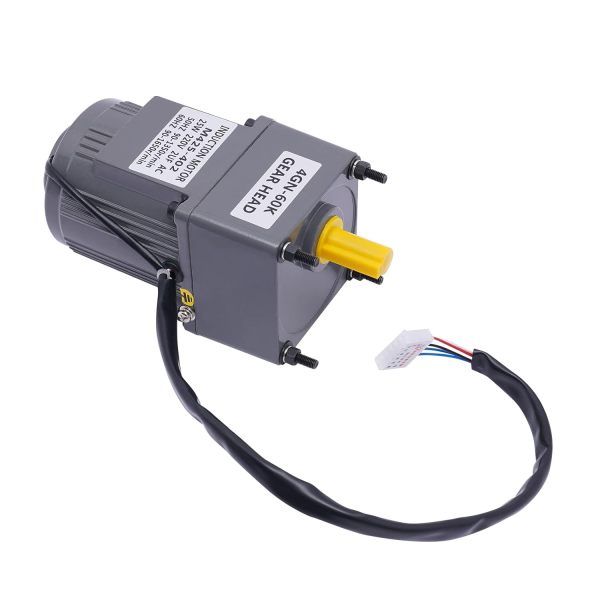

25 W Gear Speed Motor Ac Gear Motor Electric Motor Adjustable Ac 220 V 60 K Used In Packaging Machine Tools Transportation Equipment
-
Brand:
CNCEST
-
Product Code:
JZ8V7C4MN2WMT
-
Availability:
In Stock
Free Fast Shipping:
On all orders
Adjustable Speed
With a speed adjustment knob with clear prompts, you can adjust different speeds (0-100%) according to different products to achieve the desired effect.
Safety Guard
The built-in cooling fan (>60W), cooling holes, stable pure copper coil, and slow start function that can effectively avoid current overshoot and protect the motor timely can ensure safety and prolong the motor's life.
Stable Operation
Ball bearings at both ends of the rotor can reduce friction and temperature during use, ensuring stable operation.
Convenient and Simple
Complete accessories, simple structure, convenient switch, knob, and detailed instructions allow you to complete the installation and start using it in a short time
Effortless Cleaning
The smooth surface makes it easy for you to clean the residue with water and a towel.
Protective Packaging
The foam and bubble bag can better protect your product during transportation so that it can be delivered to you completely.
.jpg?x-oss-process=image/resize,w_150,h_150)
Long Connecting Cable
The 3.28ft cable allows you to have enough disposable length for easier use, and can also further protect your safety.
.jpg?x-oss-process=image/resize,w_150,h_150)
Round Corners
Compared with traditional square corners, an arc design without a burr can better care for your skin.
.jpg?x-oss-process=image/resize,w_150,h_150)
Multiple Power Cords
Different colors of power cords allow you to easily connect them without confusion.
.jpg?x-oss-process=image/resize,w_150,h_150)
Solid Stand
This 6.3*3 inch stand with two outwardly extending feet can better maintain product stability and ensure smooth operation.
.jpg?x-oss-process=image/resize,w_150,h_150)
Application
This product can be widely used in packaging, machine tools, transportation equipment, textile machinery, automatic welding machines, automotive industry, elevator machinery, printing, textile, dyeing, chemical, food, pharmaceutical, and other engineering machinery.
Build to Last
High-quality cast aluminum, plastic spraying, integration, and heat treatment make the product heat-resistant, impact-resistant, wear-resistant, corrosion-resistant, and solid, so it has a long service life.
.jpg?x-oss-process=image/resize,w_150,h_150)
Specifications
-
Color:
Gray
-
Name:
4GN-60K Gear Head
-
Model:
M425-402
-
Material:
Cast Aluminum
-
Processes:
Plastic Spraying, Integration, Heat Treatment Process
-
Type:
AC Gear Motor, Induction Motor
-
Shape:
Square, Round
-
Feature:
Portable
-
Power Phrase:
Single-phrase
-
Motor:
Pure Copper Motor
-
Noise:
About 50db
-
Built-in Fan:
＞60W
-
Torque:
About 8N.m
-
Voltage:
AC 220V
-
Power:
25W
-
Capacitance:
2UF
-
Adjustable Speed:
0-100%
-
Assembly Required:
Yes
-
Suitable Screw:
M5 (Not Included)
-
Speed:
50Hz 90-1350r/min, 60Hz 90-1650r/min
-
Reduction Ratio:
1
-
Temperature:
-10-60℃/14-140℉
-
Connecting Line Length:
About 1m/3.28ft
-
Shaft Diameter:
10mm/0.39inch
-
Shaft Height:
27mm/1.06inch
-

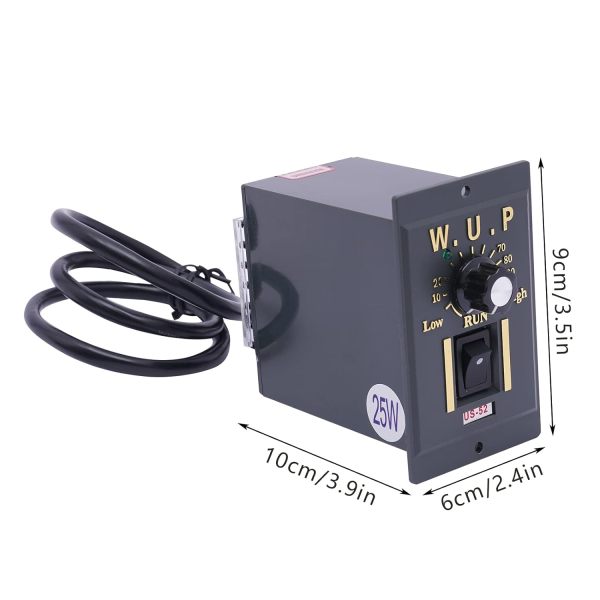

Speed Controller Size:
9*6*10cm/3.5*2.4*3.9inch
-

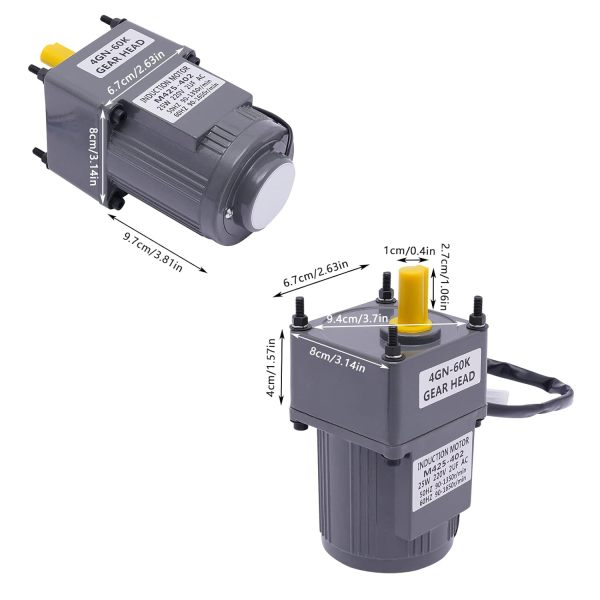

Motor Size:
6.7*8*9.7cm/2.6*3.2*3.8inch
-
Reducer Size:
6.7*8*4.6cm/2.6*3.2*1.8inch
-
Stand Size:
16*7.5*12.5cm/6.3*3*4.9inch
-
Stand Top Length:
10.4cm/4.1inch
-
Package Size:
24*24*12.5cm/9.45*9.45*4.92inch
-
Net Weight:
2.5kg/5.51lbs
-
Gross Weight:
3kg/6.61lbs
.jpg?x-oss-process=image/resize,w_150,h_150)
Package Included
-
1* Gear Motor
-
1* Speed Controller
-
1* English Manual
-
1* Stand
Specifications
| Color |
Gray
|
| Name |
4GN-60K Gear Head
|
| Model |
M425-402
|
| Material |
Cast Aluminum
|
| Processes |
Plastic Spraying, Integration, Heat Treatment Process
|
| Type |
AC Gear Motor, Induction Motor
|
| Shape |
Square, Round
|
| Feature |
Portable
|
| Power Phrase |
Single-phrase
|
| Motor |
Pure Copper Motor
|
| Noise |
About 50db
|
| Built-in Fan |
＞60W
|
| Torque |
About 8N.m
|
| Voltage |
AC 220V
|
| Power |
25W
|
| Capacitance |
2UF
|
| Adjustable Speed |
0-100%
|
| Assembly Required |
Yes
|
| Suitable Screw |
M5 (Not Included)
|
| Speed |
50Hz 90-1350r/min, 60Hz 90-1650r/min
|
| Reduction Ratio |
1 |
| Temperature |
-10-60℃/14-140℉
|
| Connecting Line Length |
About 1m/3.28ft
|
| Shaft Diameter |
10mm/0.39inch
|
| Shaft Height |
27mm/1.06inch
|
| Speed Controller Size |
9*6*10cm/3.5*2.4*3.9inch
|
| Motor Size |
6.7*8*9.7cm/2.6*3.2*3.8inch
|
| Reducer Size |
6.7*8*4.6cm/2.6*3.2*1.8inch
|
| Stand Size |
16*7.5*12.5cm/6.3*3*4.9inch
|
| Stand Top Length |
10.4cm/4.1inch
|
| Package Size |
24*24*12.5cm/9.45*9.45*4.92inch
|
| Net Weight |
2.5kg/5.51lbs
|
| Gross Weight |
3kg/6.61lbs |
Product Tips
Notes
1.Please strictly follow the instructions for use and installation, and pay attention to the safety precautions inside.
2.Please keep this product away from children, and do not knock on or beat this product.
