£149.90

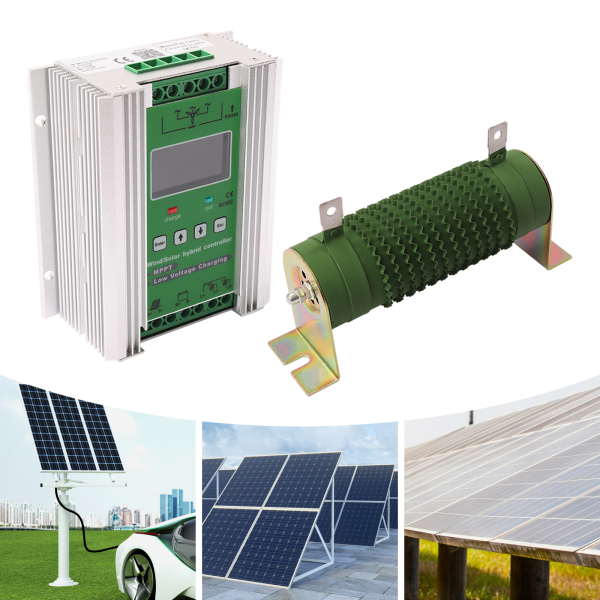

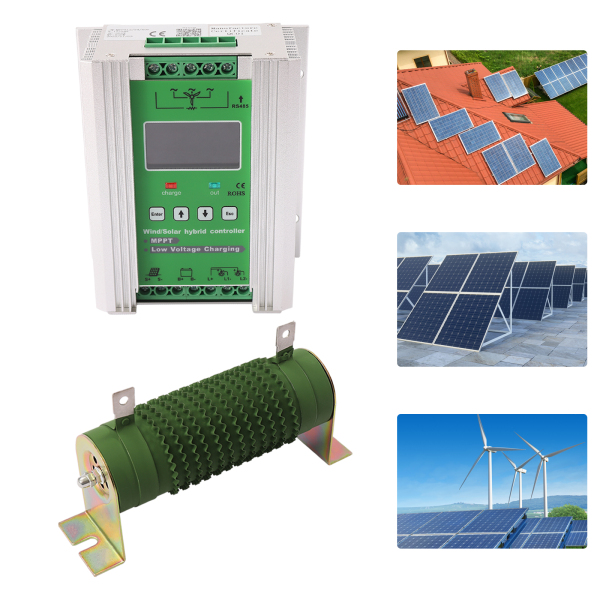

MPPT Wind Solar Hybrid Charge Controller 500W Solar And 600W Wind Dock Efficient Convenient and Intelligent HighPoint
-
Brand:
CNCEST
-
Product Code:
YLLNT95E99ZFP
-
Availability:
In Stock
Free Fast Shipping:
On all orders
High-quality Material
This product is made of high-quality aluminum alloy, which is wear-resistant, corrosion-resistant, heat-resistant, strong, durable, and not easy to deform.
MPPT Charging Method
The controller adopts an advanced high-speed processor and MPPT control algorithm with a boost charging function to realize MPPT charging with high response speed, high reliability, and high industrial standards at low wind speeds.
Automatic Identification
It can automatically identify 12V or 24V voltage, which is very convenient to use.
User-friendly Design
The controller has multiple keys, allowing you to adjust the parameters according to your needs and different operating environment.
Lightweight and Compact
It is lightweight(2.6kg/5.8lbs), compact (5.5*6.4*2.5inch), and easy for you to move.
Guaranteed Customer Service
We are committed to providing quality products and services. If you have any questions, please feel free to contact us. We will reply as soon as possible and solve the problem for you.
Indicator Light
The red indicator light on the controller will light up when the product is charged, and the output indicator light will light up when the product output is normal, which can help you to better grasp the usage status of the product.

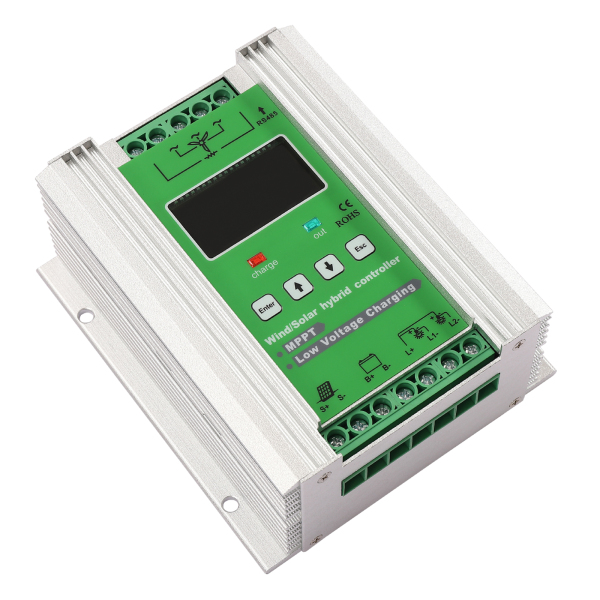

LCD Screen
The LCD screen with a clear interface can display real-time voltage, power, etc, helping you to grasp the use status of this product.
Increase Power Generation
It uses dual charging of wind energy and solar energy with a high power of 600W and 500W, which can effectively increase power generation. Meanwhile, it works day and night, which can promote working efficiency.
Multiple Protection Functions
The controller has multiple protection functions, including lightning protection, solar anti-reverse charging, automatic over-voltage and over-current braking, reverse battery connection and open-circuit protection, allowing you to use it safely. Meanwhile, the controller will start the stepless unloading function to protect the equipment system under high wind speed or excessive power of the wind generator.
Specifications
-
Color:
Green
-
Material:
Aluminium Alloy
-
Style:
Modern
-
Voltage:
12V/24V (Automatic Identification)
-
Wind Power:
600W
-
Solar Power:
500W
-
Net Weight:
2.6kg/5.8lbs
-
Gross Weight:
2.8kg/6.17lbs
-
Package Size:
36*29*11cm/14*11*4inch
-
Controller Size:
14*16.5*6.6cm/5.5*6.4*2.5inch
-
Load Resistor Size:
23.6*11cm/9*4inch
-
Load Resistor Cylinder Diameter:
6cm/2.3inch
Package Included:
-

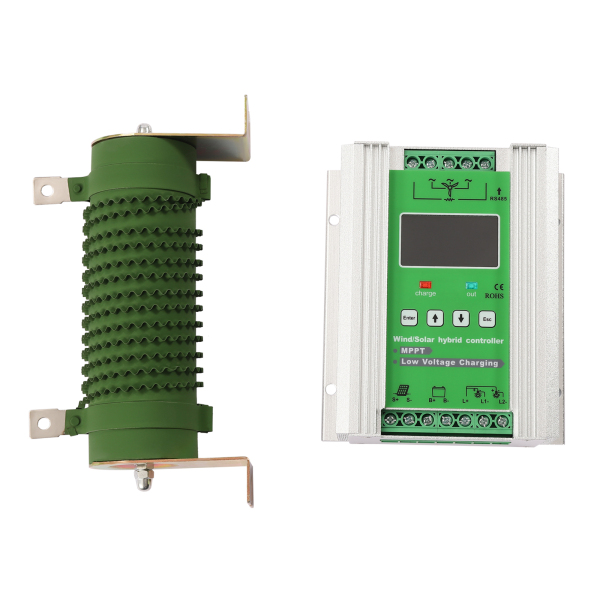

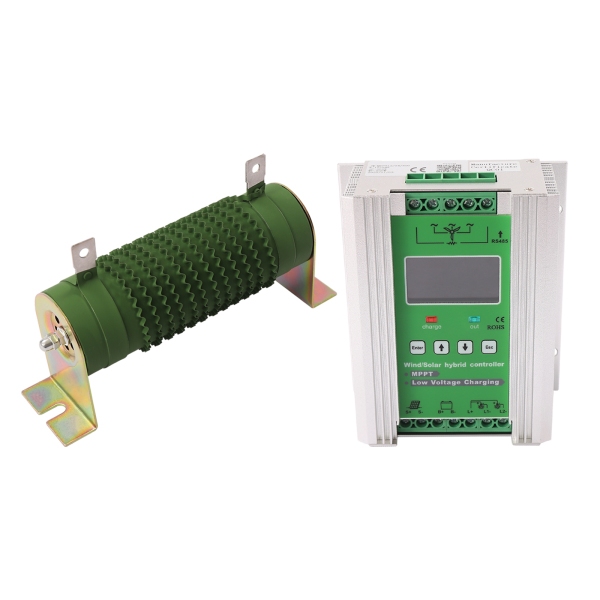

1* Wind Solar Hybrid Controller
-
1* Load Resistor
Specifications
| Color |
Green
|
| Material |
Aluminium Alloy
|
| Style |
Modern
|
| Voltage |
12V/24V (Automatic Identification)
|
| Wind Power |
600W
|
| Solar Power |
500W
|
| Net Weight |
2.6kg/5.8lbs
|
| Gross Weight |
2.8kg/6.17lbs
|
| Package Size |
36*29*11cm/14*11*4inch
|
| Controller Size |
14*16.5*6.6cm/5.5*6.4*2.5inch
|
| Load Resistor Size |
23.6*11cm/9*4inch
|
| Load Resistor Cylinder Diameter |
6cm/2.3inch |
Product Tips
Notes:
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
Application:

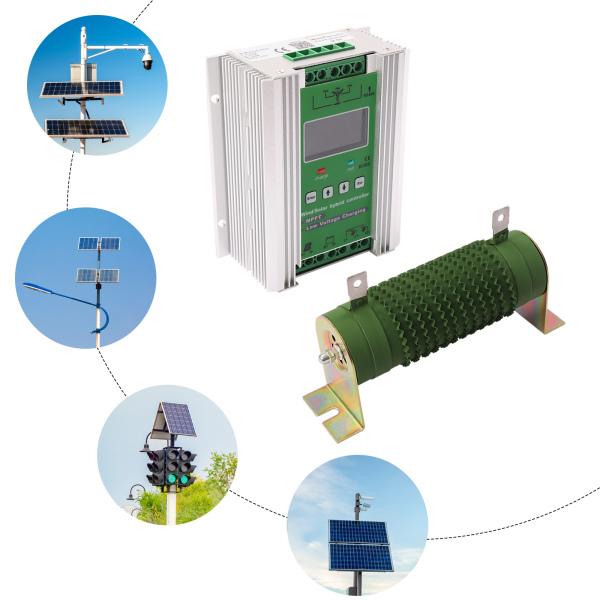

It is suitable for hybrid power generation, street light systems, household power, field monitoring, etc.
