Notes

1.This type of inner bore bearing puller cannot be used to disassemble washing machine bearings.
2.Please keep the nut downward during installation, which can increase the torque and is convenient for use.
3.Please always wear safety glasses (not included) when doing automotive maintenance.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

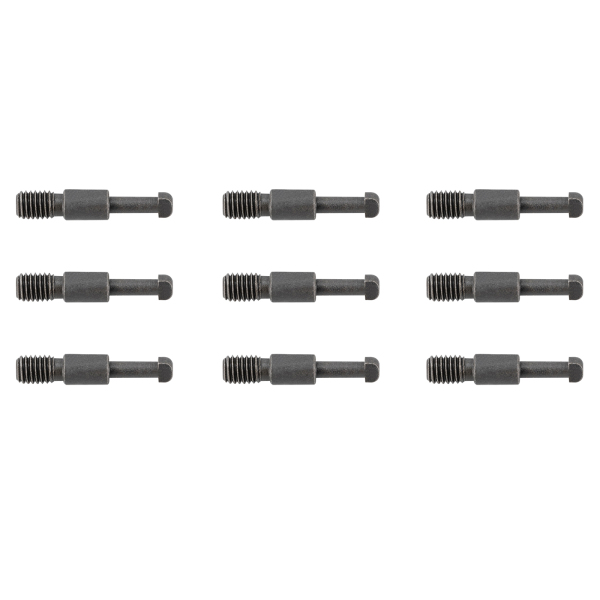

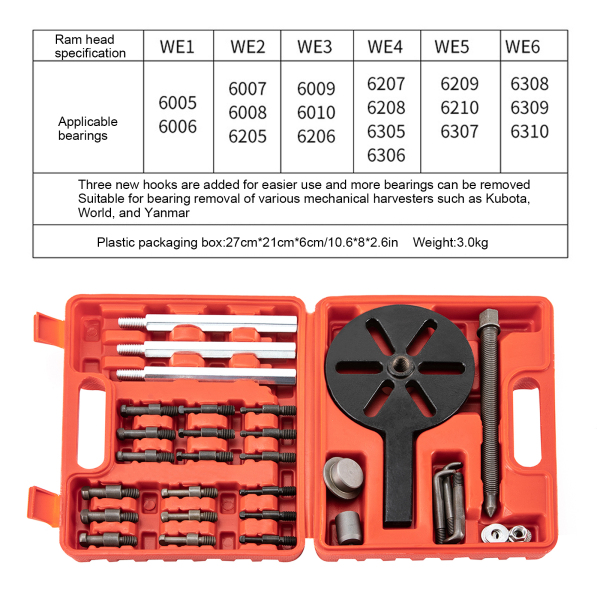

Puller Head Corresponding to Bearing

WE1 6005/606
WE2 6007/6008/6205
WE3 6009/6010/6206
WE4 6207/6208/6305/6306
WE5 6209/6210/6307
WE6 6308/6309/6310

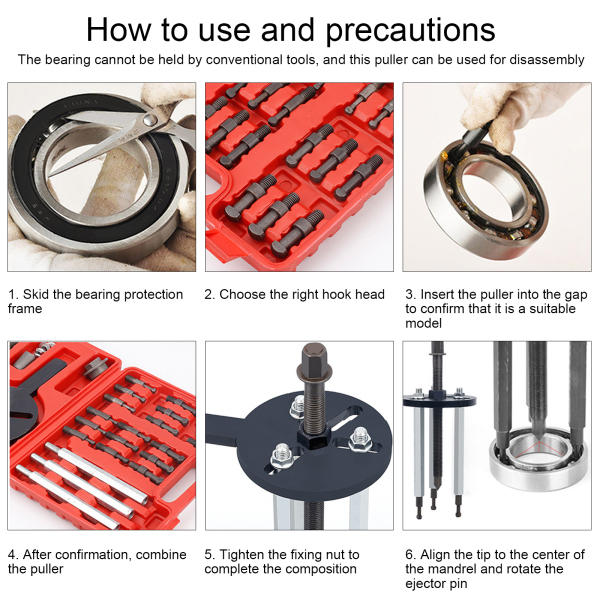

Usage:

1.Confirm the model of the removed bearing and select the corresponding puller head specification based on the bearing model.
2.Assemble the pull horse head and the pull rod (Please note that all threads at the pull horse head end need to be screwed into the inner hole of the pull rod and locked tightly).
3.Use a screwdriver to pry off the bearing cage to expose the ball, and pull the ball to leave gaps at three places at 120 °.
4.Insert and rotate the puller head 90 ° at three gaps of 120 ° in order. At this time, the puller head can jam the inner and outer rings of the bearing, thereby confirming that the puller head model is correct.

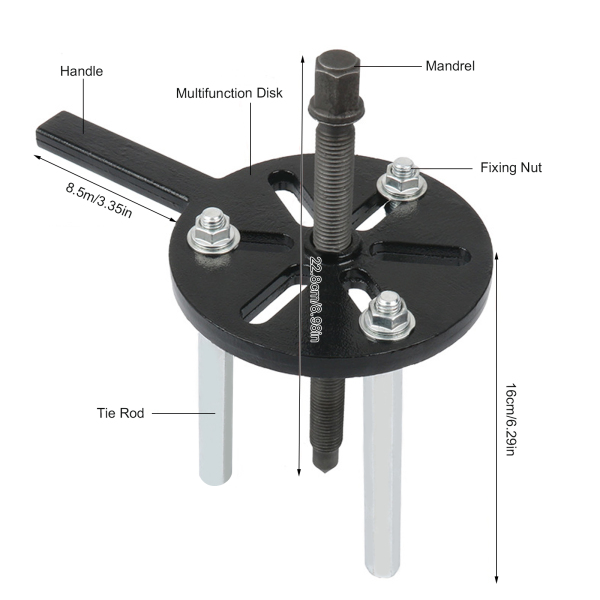

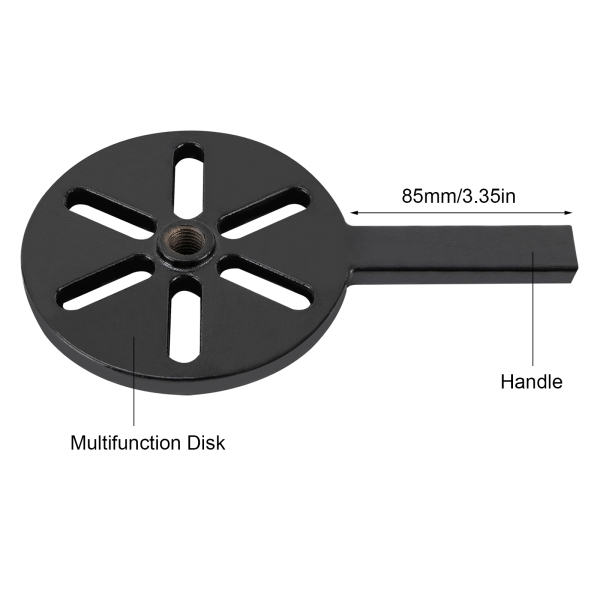

5.Install the multi-functional disk onto the pull rod, and secure the pull rod and the multi-functional disk with nuts. Before locking, continue to confirm that the puller head can fully jam the inner and outer rings of the bearing. If there is any misalignment, slightly rotate the pull rod for adjustment until the nut is fully locked.
6.Hold the handle in hand and rotate the ejector pin to allow the tip to enter the center hole of the spindle head, continuing to rotate until the bearing is removed.
