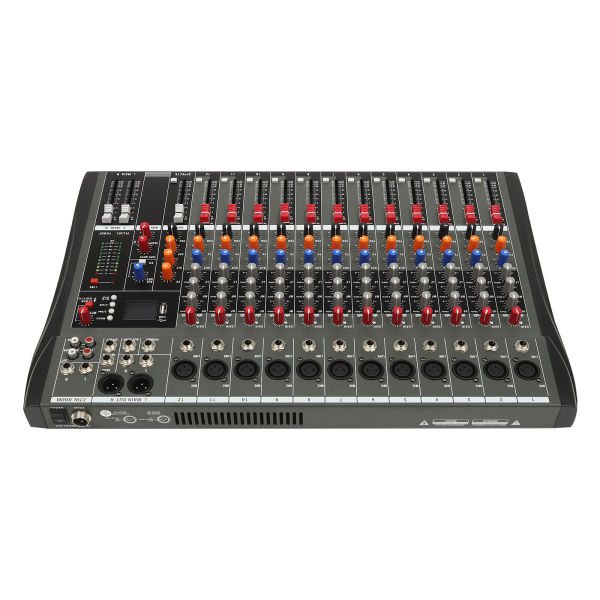

Professional Mixer Sound Board Console 12 Channel Desk System USB Computer MP3

£118.00 £143.00

Professional Mixer Sound Board Console 12 Channel Desk System USB Computer MP3

(0 reviews)

Brand: CNCEST
Product Code: YQ8EQK3IUKHJ8
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Multiple Connections

With its built-in Bluetooth module and wireless range of 32.81ft, it is compatible with mobile phones, computers, audio systems, electronic instruments, wireless microphones, and amplifiers, making it easy to turn your home into a professional recording studio.

Built to Last

The metal surface enhances the anti-drop and durability of the mixer. Therefore, you can use it for a long time without frequent replacement, which can save your costs to a certain extent.

Three-band Equalizer

The main channel of the mixer is equipped with a three-band equalizer, which can independently control the high/medium/low channels, making the sound quality more rich and full.

Safe to Use

The top has some heat dissipation holes, which can ensure that the internal heat is effectively dissipated during long-term use, preventing malfunction or damage caused by overheating, and ensuring safe use.

Easy to Carry

With compact size (20.1*13.6*1.6in) and lightweight (9.9lbs), it can be carried to any location with less effort and stored without taking up too much space.

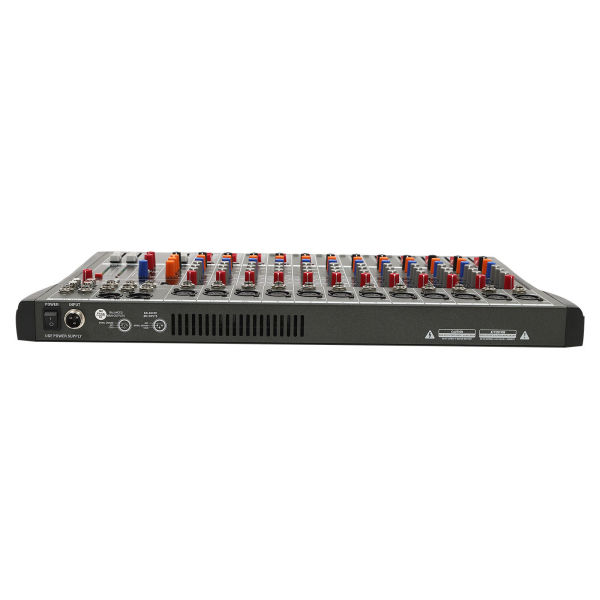

Power Interface

The power interface on the side of the body has undergone a CNC polishing process, which is directly inserted and pulled out, and is solid, durable, and convenient to use.

+48V Phantom Power

It adopts 48V phantom power to be able to use professional condenser microphones to create a high-grade tuning experience for you, making the product more widely used.

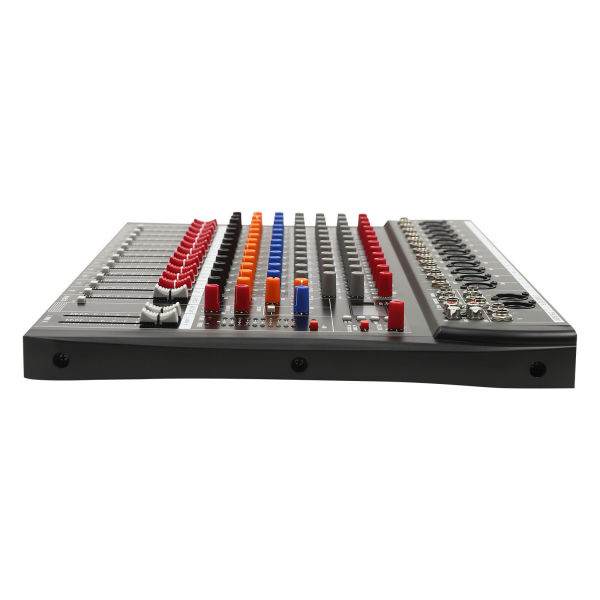

Stable Feet

Its bottom has four anti-slip feet, which can prevent the machine from slipping and avoid scratching the ground.

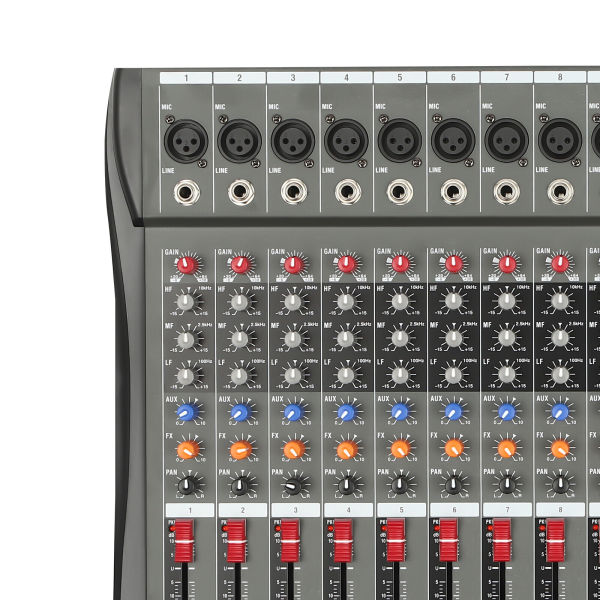

It has 12 mono microphone/line channel inputs and one set of stereo inputs, and each mono channel has 3 balanced segments to independently adjust the mid, high, and low sounds, creating a delicate sound quality.

It can monitor your music in real time, providing a stepping stone to becoming a professional mixer! It has a built-in analog effect to help you better process the sound and create a professional-grade tuning effect for you.

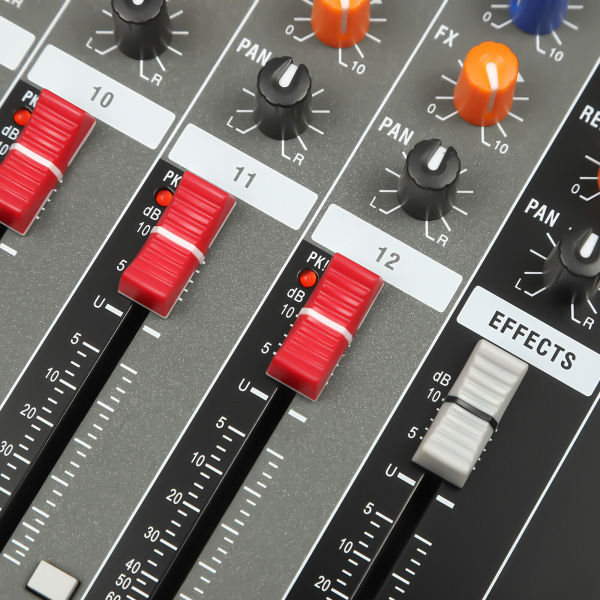

Its rotary potentiometer has a concave-convex design on the surface to avoid hand slipping, and its fader with an extended slider is made with high-quality material to ensure smooth movement during use, achieving more precise adjustment.

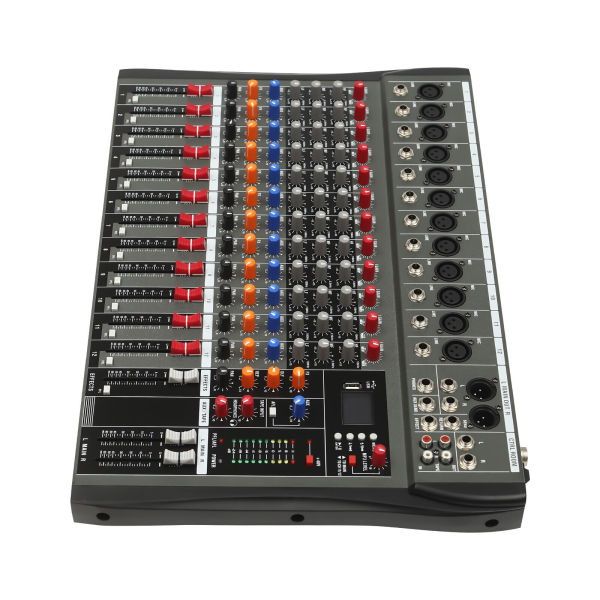

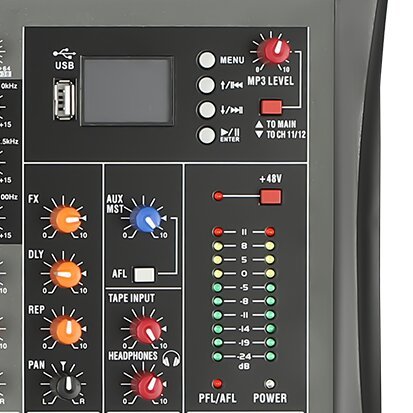

The LCD screen and colored indicator lights can display the working status in real time. This design not only makes the operation simpler and more intuitive, but also allows you to quickly adjust audio settings, making it easy for even beginners to get started.

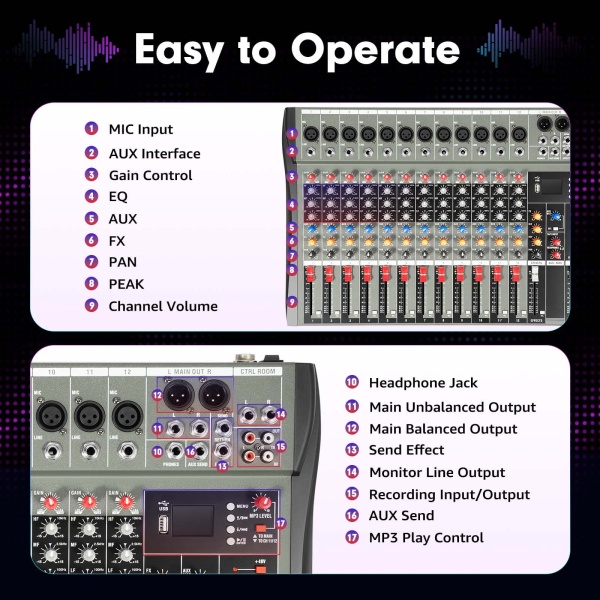

It has 48V phantom power, microphone input, and USB interface, compatible with mobile phones, computers, speakers, electronic instruments, monitor headphones, and amplifiers. Its built-in Bluetooth can achieve 1s connection, easily helping you achieve professional tuning and making the creative process more flexible.

It is suitable for home KTV, band/stage performances, campus activities, conferences, bars, music dining bars, recording studios, webcasts, and other occasions.

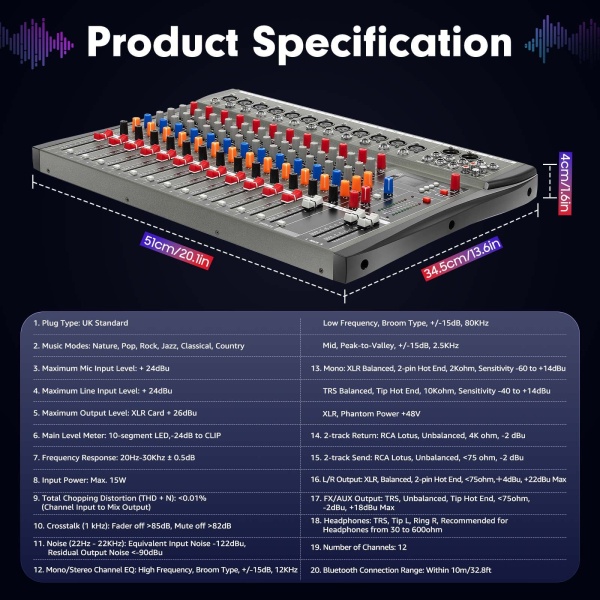

Specifications

Material: Metal
Color: Black
Style: Modern
Shape: Rectangle
Plug Type: UK Standard
Music Modes: Nature, Pop, Rock, Jazz, Classical, Country
Input: AC 100-240V, 50/60Hz
Output: DC 8V 2A
Maximum Mic Input Level: + 24dBu
Maximum Line Input Level: + 24dBu
Maximum Output Level: XLR Card + 26dBu
Main Level Meter: 10-segment LED,-24dB to CLIP
Frequency Response: 20Hz-30Khz ± 0.5dB
Input Power: Max. 15W
Total Chopping Distortion (THD + N): <0.01% (Channel Input to Mix Output)
Crosstalk (1 kHz): Fader off >85dB, Mute off >82dB
Noise (22Hz - 22KHz): Equivalent Input Noise -122dBu, Residual Output Noise <-90dBu
Mono/Stereo Channel EQ: High Frequency, Broom Type, +/-15dB, 12KHz
Mono/Stereo Channel EQ: Low Frequency, Broom Type, +/-15dB, 80KHz
Mono/Stereo Channel EQ: Mid, Peak-to-Valley, +/-15dB, 2.5KHz

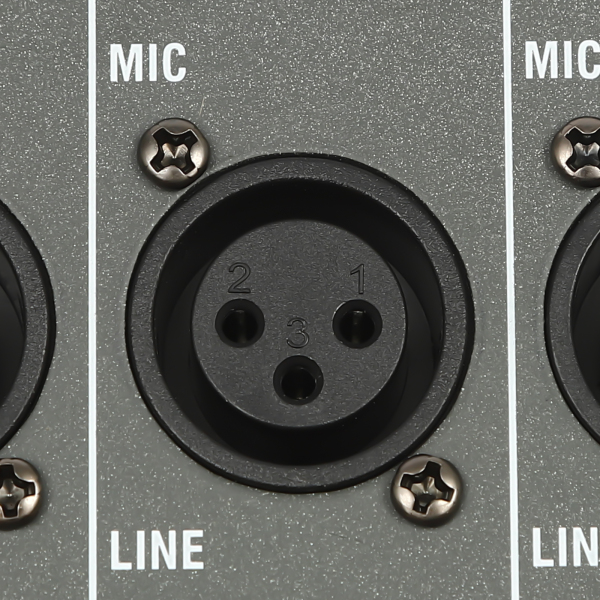

Mono: XLR Balanced, 2-pin Hot End, 2Kohm, Sensitivity -60 to +14dBu
Mono: TRS Balanced, Tip Hot End, 10Kohm, Sensitivity -40 to +14dBu
Mono: XLR, Phantom Power +48V
2-track Return: RCA Lotus, Unbalanced, 4K ohm, -2 dBu
2-track Send: RCA Lotus, Unbalanced, <75 ohm, -2 dBu
L/R Output: XLR, Balanced, 2-pin Hot End, <75ohm,＋4dBu, +22dBu Max
FX/AUX Output: TRS, Unbalanced, Tip Hot End, <75ohm, -2dBu, +18dBu Max
Headphones: TRS, Tip L, Ring R, Recommended for Headphones from 30 to 600ohm
Number of Channels: 12
Bluetooth Connection Range: Within 10m/32.8ft
Fader Sliding Groove Length: 72mm/2.8in
Product Size: 51*34.5*4cm/20.1*13.6*1.6in
Package Size: 42.5*10.5*55cm/16.7*4.1*21.7in
Net Weight: 4.5kg/9.9lbs
Gross Weight: 5.2kg/11.5lbs

Package Included

1* 12-channel Audio Mixer
1* Power Cord
1* English Manual

Specifications

Material	Metal
Color	Black
Style	Modern
Shape	Rectangle
Plug Type	UK Standard
Music Modes	Nature, Pop, Rock, Jazz, Classical, Country
Input	AC 100-240V, 50/60Hz
Output	DC 8V 2A
Maximum Mic Input Level	+ 24dBu
Maximum Line Input Level	+ 24dBu
Maximum Output Level	XLR Card + 26dBu
Main Level Meter	10-segment LED,-24dB to CLIP
Frequency Response	20Hz-30Khz ± 0.5dB
Input Power	Max. 15W
Total Chopping Distortion (THD + N)	<0.01% (Channel Input to Mix Output)
Crosstalk (1 kHz)	Fader off >85dB, Mute off >82dB
Noise (22Hz - 22KHz)	Equivalent Input Noise -122dBu, Residual Output Noise <-90dBu
Mono/Stereo Channel EQ	High Frequency, Broom Type, +/-15dB, 12KHz
Mono/Stereo Channel EQ	Low Frequency, Broom Type, +/-15dB, 80KHz
Mono/Stereo Channel EQ	Mid, Peak-to-Valley, +/-15dB, 2.5KHz
Mono	XLR Balanced, 2-pin Hot End, 2Kohm, Sensitivity -60 to +14dBu
Mono	TRS Balanced, Tip Hot End, 10Kohm, Sensitivity -40 to +14dBu
Mono	XLR, Phantom Power +48V
2-track Return	RCA Lotus, Unbalanced, 4K ohm, -2 dBu
2-track Send	RCA Lotus, Unbalanced, <75 ohm, -2 dBu
L/R Output	XLR, Balanced, 2-pin Hot End, <75ohm,＋4dBu, +22dBu Max
FX/AUX Output	TRS, Unbalanced, Tip Hot End, <75ohm, -2dBu, +18dBu Max
Headphones	TRS, Tip L, Ring R, Recommended for Headphones from 30 to 600ohm
Number of Channels	12
Bluetooth Connection Range	Within 10m/32.8ft
Fader Sliding Groove Length	72mm/2.8in
Product Size	5134.54cm/20.113.61.6in
Package Size	42.510.555cm/16.74.121.7in
Net Weight	4.5kg/9.9lbs
Gross Weight	5.2kg/11.5lbs

Product Tips

Notes

1.Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.
