£208.92
Automatic Swing Door Opener, Automatic Door Opener Kit, Electric Door Opener Kit
-
Brand:
CNCEST
-
Product Code:
JZONTL-000100ND
-
Availability:
Out Of Stock
Free Fast Shipping:
On all orders
Build to Last
This product is mainly made of high-strength aluminum alloy and iron, making it not easy to wear, rust, and deform, ensuring high durability.
Good Performance
It has a maximum opening angle of 110° and can open the door smoothly, which adopts an automated design to replace traditional door locks and add more convenience to your life and work.
Safe and Reliable
It will run in reverse when encountering obstacles during door-closing operations, which can prevent people from getting caught. The product comes with over-current protection to ensure product safety and extended service life.
Multiple Switching Methods
Equipped with remote controls, wireless hand-press switches, and keypad access control, this product provides you with multiple door-opening methods for much convenience.
Adjustable Design
The opening/closing speed, stopping time, angle, and closing force can be adjusted to meet your diverse usage needs.
With a simple structure and smooth surface, you can easily clean the product with a soft cloth.
They are provided for flexible and smooth opening, allowing for a pleasing user experience.
The smooth and round edges improve the safety of use and installation without scratching your hands.
This product is widely used for wooden, metal, or framed doors, one-way single-opening or one-way double-opening glass doors, and is ideal for hotels, offices, elderly homes, schools, hospitals, shopping malls, banks, and other places.
.jpg?x-oss-process=image/resize,w_150,h_150)
Specifications
-
Color:
Black, Silver
-
Material:
Iron, Aluminum Alloy
-
Installation Method:
Pull-fitting, Push-fitting(Corresponding to Different Connecting Arms)
-
Opening Method:
Remote Control, Wireless Hand-pressed Button
-
Operating Temperature:
-20℃ ~ +50℃/-4~122℉
-
Input Voltage:
AC 100V-240V
-
Applicable Door Width:
≤120cm/47.24in
-
Protection Grade:
IP21
-
Output Voltage:
24V DC(±10%), 3A
-
Opening Angle:
60°-110° Adjustable
-
Opening Angle:
Max 110°
-
Opening Speed:
45°/s
-
Closing Speed:
45°/s
-
Stopping Time:
0-20s (Adjustable)
-
Max. Load Capacity:
150kg/330.69lbs
-

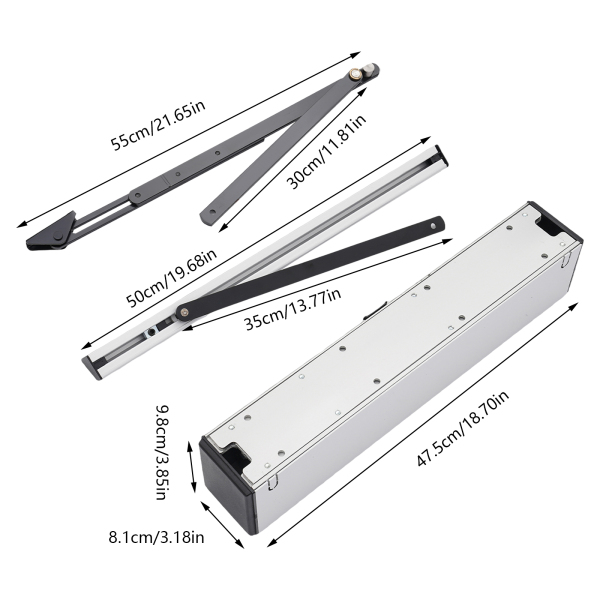

Door Opener Size:
47.5*8.1*9.8cm/18.7*3.18*3.85in
-
Pushing Arm Length:
55cm/21.65in, 30cm/11.81in
-
Pulling Arm Length:
50cm/19.68in, 35cm/13.77in
-
Package Size:
61*34*19cm/24.02*13.39*7.48in
-
Gross Weight:
8kg/17.64in
-
Net Weight:
7kg/15.43in
.jpg?x-oss-process=image/resize,w_150,h_150)

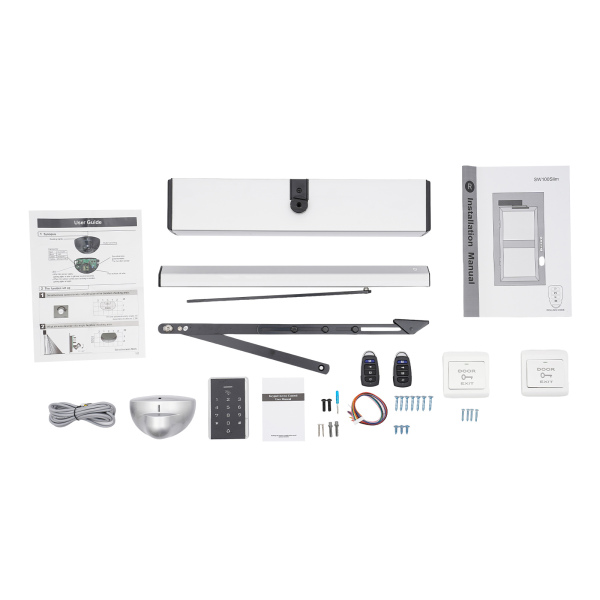

Package Included
-
1* Door Opener
-
1* Push Arm
-
1* Pull Arm
-
1* Sensor
-
2* Remote Controls
-
2* Hand-pressed Switches
-
1* Keypad Access Control
-
1* Power Cable
-
3* English Manuals
-
Other Needed Accessories
Specifications
| Color |
Black, Silver
|
| Material |
Iron, Aluminum Alloy
|
| Installation Method |
Pull-fitting, Push-fitting(Corresponding to Different Connecting Arms)
|
| Opening Method |
Remote Control, Wireless Hand-pressed Button
|
| Operating Temperature |
-20℃ ~ +50℃/-4~122℉
|
| Input Voltage |
AC 100V-240V
|
| Applicable Door Width |
≤120cm/47.24in
|
| Protection Grade |
IP21
|
| Output Voltage |
24V DC(±10%), 3A
|
| Opening Angle |
60°-110° Adjustable
|
| Opening Angle |
Max 110°
|
| Opening Speed |
45°/s
|
| Closing Speed |
45°/s
|
| Stopping Time |
0-20s (Adjustable)
|
| Max. Load Capacity |
150kg/330.69lbs
|
| Door Opener Size |
47.5*8.1*9.8cm/18.7*3.18*3.85in
|
| Pushing Arm Length |
55cm/21.65in, 30cm/11.81in
|
| Pulling Arm Length |
50cm/19.68in, 35cm/13.77in
|
| Package Size |
61*34*19cm/24.02*13.39*7.48in
|
| Gross Weight |
8kg/17.64in
|
| Net Weight |
7kg/15.43in |
Product Tips
Notes
1.The product should be installed by a professional in accordance with the installation instructions.
2.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
