£170.00

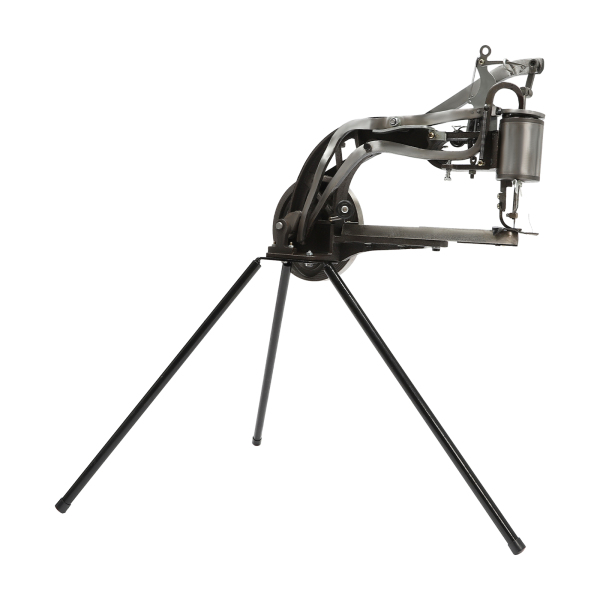

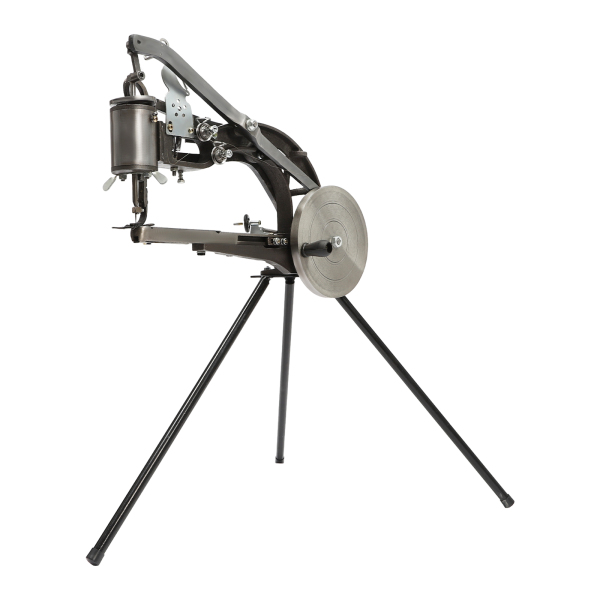

Shoe Sewing Machine - Hand Cobbler Shoe Repair Machine, Shoe Repair Equipment Manual Leather Cobbler Sewing Machine
-
Brand:
CNCEST
-
Product Code:
YSXKB6P9WDML8
-
Availability:
Out Of Stock
Free Fast Shipping:
On all orders
Build to Last
This product is made of high-quality iron, and the surface has been electroplated and painted, with high hardness, high abrasion resistance, anti-corrosion, anti-rust performance, and long service life.
Easy to Assemble
The installed host part, the English manual, and complete installation parts can help you finish the installation quickly and accurately.
360° Adjustable Direction
The 360° adjustable direction universal wrench, foot, and needle enable you to adjust your working route at any time. You can put a tall boot on and sew a full circle or something else without rotating the boot.
Manual Benefits
The hand crank operation allows you to have a good grasp of the strength and accuracy of the machine operation. You can control the speed at will and adjust it at any time, which is ideal for DIY. You can pause it as often as you need to, and at the same time, it allows you to access places that are not accessible to most machines.
Easy to Operate

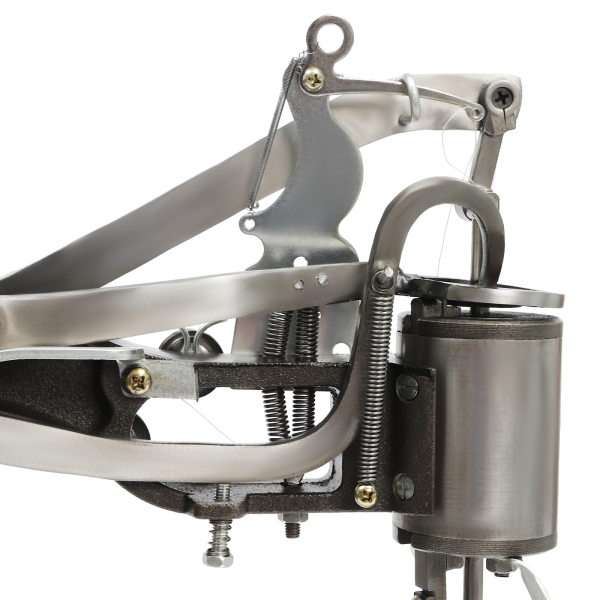

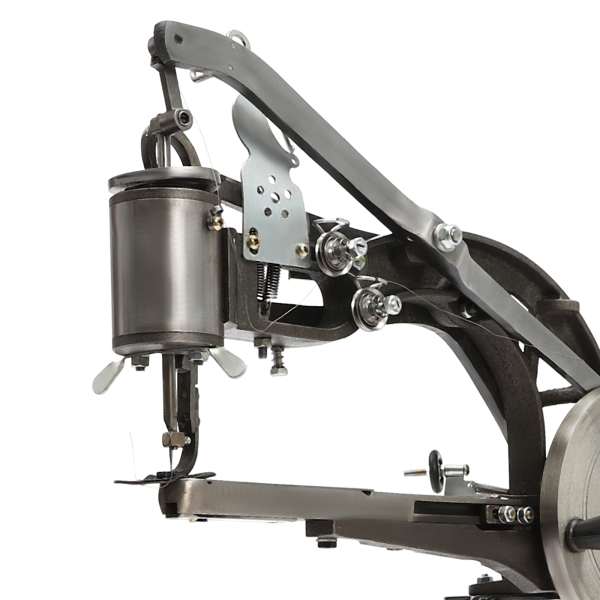

The convenient presser wrench can control the rise and fall of the presser foot by controlling the upper and lower plates (the presser foot lifts when the upper plate is under pressure, and the presser foot lowers when the lower plate is under pressure). The ergonomic handle is easy to grip, thus making hand cranking easier. At the same time, the well-made bobbin makes the lines tighter and the special turntable operation is easier to use.
Ingenious Design
The presser plate allows you to adjust the tension of the cotton thread and you can adjust the stitch length at will by turning the screw up/down (up to 0.24in width) to optimize the curvature of the spindle to reduce friction, and the new spindle shape makes the machine run more smoothly, improves roughness or stuck bearings, and makes the product look better.

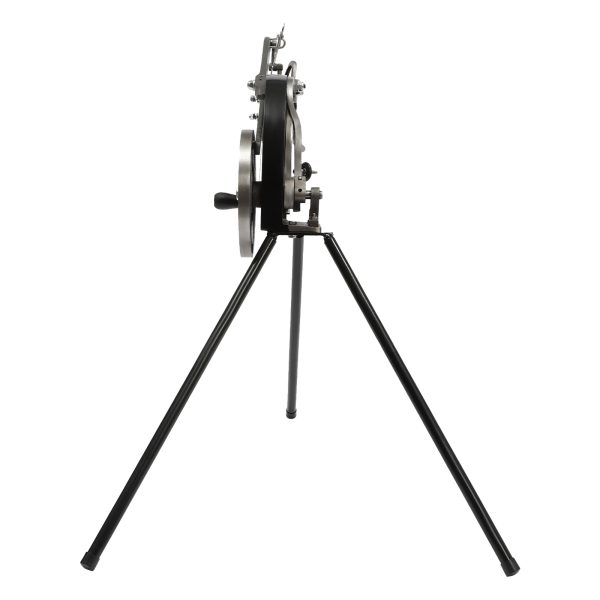

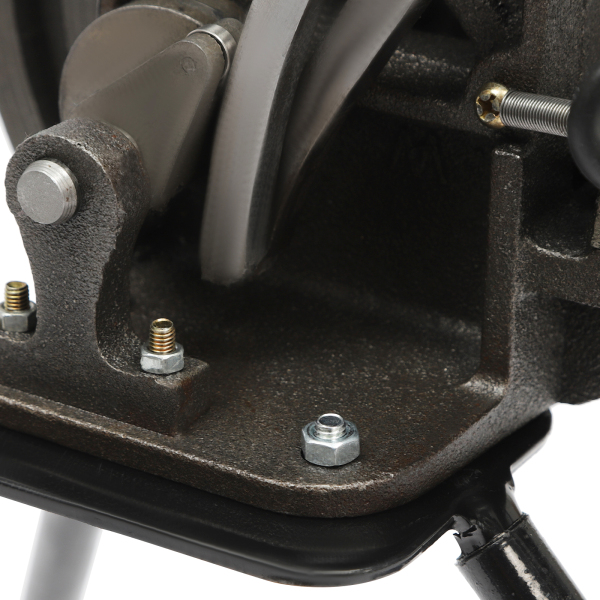

The three legs with anti-slip pads provide better stability and ensure smoother sewing, as well as better protection for your floor, making it a good helper for old and long-term shoe machines with locks.

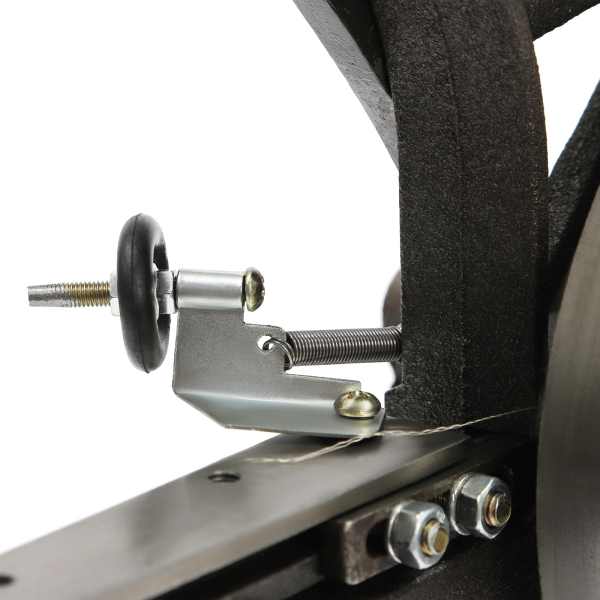

It serves to hold the needle in place, thus giving you a tighter and more precise stitching alignment.
You can place the used bobbins on it for coiling, thus providing you with more convenience in your work.
It can be widely used in homes, stores, etc., for sewing various sizes of cloth shoes, rubber shoes, leather shoes, travel bags, raincoats, etc., and is suitable for nylon thread, silk thread, and cotton thread.
.jpg?x-oss-process=image/resize,w_150,h_150)
Specifications
-
Model:
JX-JJ
-
Material:
Iron
-
Color:
Black
-
Process:
Electroplating, Spraying
-
Type:
Semi-manual
-
Maximum Stitch Width:
6mm/0.24in
-
Maximum Cutting Thickness:
3-5mm/0.12-0.2in(Actual Cutting Thickness Depends on Material)
-
Assembly Required:
Yes
-
Mount Type:
Floor Standing
-
Number of Items:
1
-
Gross Weight:
11kg/ 24.25 lbs
-
Net Weight:
10.5kg/ 23.15 lbs
-
Product Size(L*H):
44*28 cm/ 17.32*11.02 in
-
Stand Size:
63*48cm/24.8*18.9in
-
Package Size:
48*13.5*30.5 cm/18.9*5.31*12 in
.jpg?x-oss-process=image/resize,w_150,h_150)
Package Included
-
1 * Hand Cobbler Shoe Repair Machine
-
1 * English Manual
-
All Accessories for Installation
Specifications
| Model |
JX-JJ
|
| Material |
Iron
|
| Color |
Black
|
| Process |
Electroplating, Spraying
|
| Type |
Semi-manual
|
| Maximum Stitch Width |
6mm/0.24in
|
| Maximum Cutting Thickness |
3-5mm/0.12-0.2in(Actual Cutting Thickness Depends on Material)
|
| Assembly Required |
Yes
|
| Mount Type |
Floor Standing
|
| Number of Items |
1
|
| Gross Weight |
11kg/ 24.25 lbs
|
| Net Weight |
10.5kg/ 23.15 lbs
|
| Product Size(L*H) |
44*28 cm/ 17.32*11.02 in
|
| Stand Size |
63*48cm/24.8*18.9in
|
| Package Size |
48*13.5*30.5 cm/18.9*5.31*12 in |
Product Tips
Notes
1.When adjusting the upper thread tension, you just only need to adjust one of them.
2.The material of this product is iron which is easy to rust, so the surface of the machine is coated with anti-rust oil. One side of the machine's bracket is stable, if not, please install it on one side.
3.It is hand-made by the master blacksmith, so the product will leave a knocking mark, and is not as smooth as the machine that is mold made.
4.The moving parts of this product need to be refueled regularly, so as to ensure that the machine runs lightly, without noise, improves efficiency, and prolongs service life. It is recommended that the machine that has not been used for a long time should be lubricated before use.
5.Preparation work before operation: pull up the presser foot to avoid friction between the presser foot and the needle plate, check the tightness of each fixing screw, add lubricating oil(not included) to each oiling point, then shake the guide plate without the sound of jamming to use.
6.Please do not shake the handle backward when working to avoid knotting the bobbin inside. The needle slot must face outward to avoid breaking the thread.
How to Use
1.Assemble the tripod at first. Put the main body on the tripod. Make sure it is the same angle as the two corners.
2.Swing the nylon thread in the studs.
3.These card slots fit with the locks. Assemble the crank. Rotate the handle at ease to start the machine.
4.Thread through the route step by step.Easy to pull the string when it is finished.
5.Use the screwdriver to pry open the base. Take out the small coil and thread it.
6.Observe whether the needle has touched the operating pieces. Use the wrench to twist the needle when it does touch.
Alter the sewing space by controlling the spin button. Choose your desired space clockwise or counterclockwise.
