3,582.60SEK

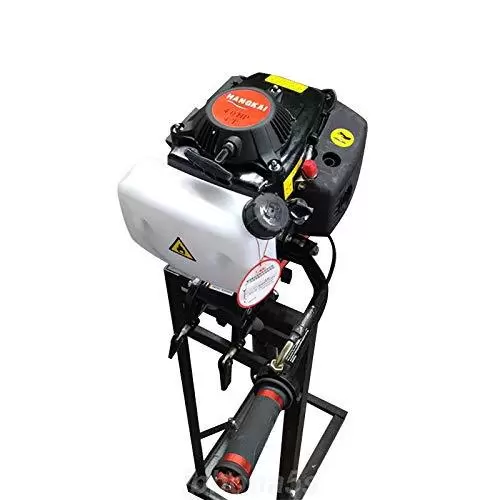

CNCEST 52CC 4-Stroke 4 HP Outboard Engine Outboard Boat Engine Petrol Engine Four Flush-4 HP Outboard Engine
-
Brand:
CNCEST
-
Product Code:
OT-ML-277
-
Availability:
Out Of Stock
Free Fast Shipping:
On all orders
High-quality Material
The product made of high-quality aluminum alloy and plastic has high hardness, anti-corrosion, and anti-rust properties, which can effectively extend the life of the product.
Powerful
The 4-stroke 4hp engine can rotate up to 5500rpm, which is powerful enough for you to drive quickly and save a lot of time and energy.

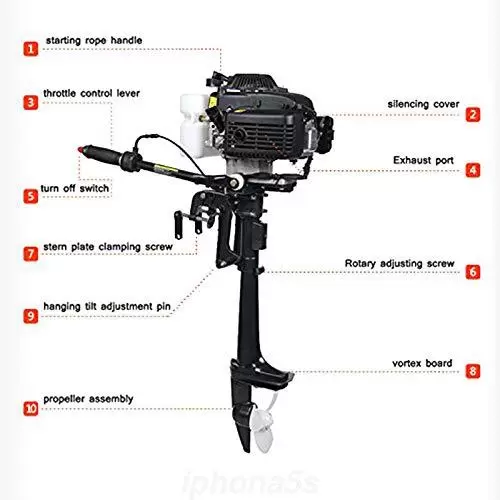

Easy to Operate
The simple manual start method and the detailed English manual inside the product package can help you operate easily and accurately. All you need to do is pull the rope and you're ready to start.
Flexible Steering
This product has a 360-degree steering function and clutch control, which can easily control the steering of the boat.
Good Noise Reduction Effect
Compared with two-stroke, the four-stroke outboard has a better noise reduction effect. It can provide you with a quieter working environment.
Low Fuel Consumption
This product adopts new fuel saving and has a low energy consumption of 0.3gal/h. This can help you save a lot of energy and money.

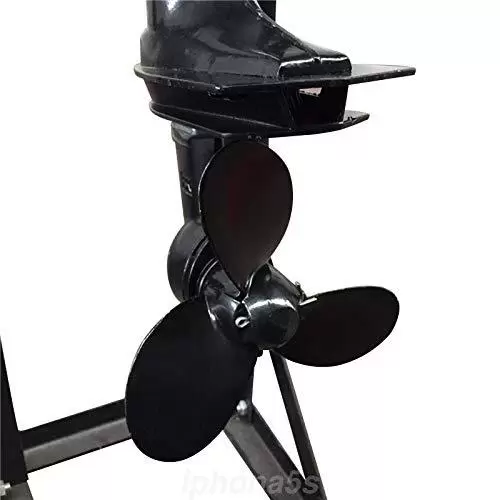

Three-blade Propeller
The Three-blade propeller with streamlined design can reduce water resistance and provide stronger power during operation.
Large Capacity Fuel Tank
The 0.29-gallon fuel tank can effectively reduce the number of times you have to add fuel, thus increasing your efficiency.
Baffle
The baffle above the propeller can effectively reduce the bumps of the waves and avoid water from getting the boat board wet.
Easy to Carry
The outboard with a size of 37*11.81*10.23in has a compact body, which is easy to carry on the go. You can easily store it in the trunk of your car.

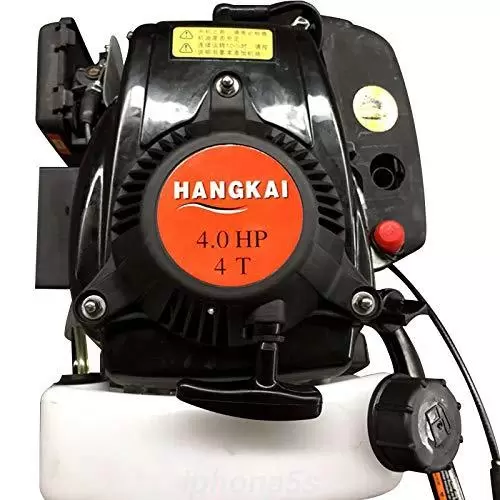

Fast Heat Dissipation
The large heat dissipation holes on the engine housing can help dissipate heat quickly and prevent the engine from burning after a long period of use, thus effectively extending the life of the engine.
Application
This product is suitable for small boats of different materials (such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats), and is applicable to water operations in rivers, lakes, reservoirs, fish ponds, etc. It is applicable to ships with a load of about 440.92-1322lbs and a stern plate height of 17.32 inches or less.

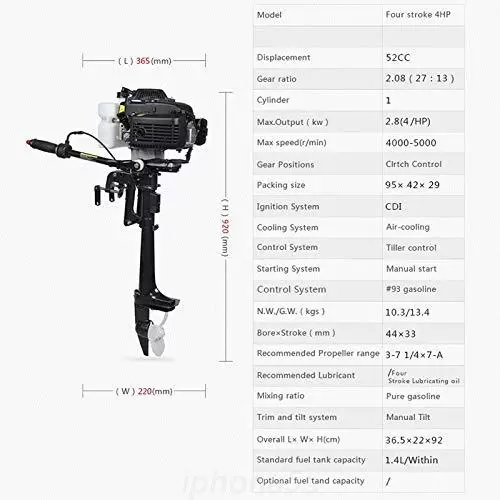

Specifications
-
Material:
Aluminum, Plastic
-
Color:
Black
-
Type:
4 Stroke 4 Horsepower
-
Shift Position:
Clutch Control
-
Ignition System:
CDI
-
Cooling System:
Air Cooling
-
Starting Method:
Manual Start
-
Fuel:
No.92 Lead-free Gasoline or Above
-
Propeller Size:
3-7 1/4X7-A
-
Recommended Lubricant:
4 Stroke Lubricating Oil
-
Mixing Ratio:
Pure Gasoline
-
Trim and Tilt System:
Manual Tilt
-
Transmission Ratio:
2.08 (27
-
The Number of Cylinders:
1
-
Standard Fuel Tank Capacity:
Within 1.1 L/0.29gal
-
Fuel Consumption Rate:
1.1L/0.3gal/h
-
Maximum Power:
2.8 kW /4 HP
-
Max. Speed:
4500-5500r/Min
-
Capacity:
55cc
-
Short Shaft Length:
40cm/15.75in
-
Adaptive Transom Plate Height:
≤44cm/17.32in
-
Recommended Load Capacity:
200-600kg/440.92-1322lbs
-
Speed:
6-9km/3.7-5.6mile/h (vary depending on the environment, the water and the weight of the boat)
-
Gross Weight:
13.15kg/29lbs
-
Net Weight:
11.1kg/24.5lbs
-
Product Size:
94*30*26cm/37*11.81*10.23in
-
Package Volume:
95*42*29cm/37.40*16.54*11.42in
Package Included
-
1x Outboard Motor
-
1x Tool Kit
-
1x Funnel
-
1x English Manual
Specifications
| Material |
Aluminum, Plastic
|
| Color |
Black
|
| Type |
4 Stroke 4 Horsepower
|
| Shift Position |
Clutch Control
|
| Ignition System |
CDI
|
| Cooling System |
Air Cooling
|
| Starting Method |
Manual Start
|
| Fuel |
No.92 Lead-free Gasoline or Above
|
| Propeller Size |
3-7 1/4X7-A
|
| Recommended Lubricant |
4 Stroke Lubricating Oil
|
| Mixing Ratio |
Pure Gasoline
|
| Trim and Tilt System |
Manual Tilt
|
| Transmission Ratio |
2.08 (27 |
| The Number of Cylinders |
1
|
| Standard Fuel Tank Capacity |
Within 1.1 L/0.29gal
|
| Fuel Consumption Rate |
1.1L/0.3gal/h
|
| Maximum Power |
2.8 kW /4 HP
|
| Max. Speed |
4500-5500r/Min
|
| Capacity |
55cc
|
| Short Shaft Length |
40cm/15.75in
|
| Adaptive Transom Plate Height |
≤44cm/17.32in
|
| Recommended Load Capacity |
200-600kg/440.92-1322lbs
|
| Speed |
6-9km/3.7-5.6mile/h (vary depending on the environment, the water and the weight of the boat)
|
| Gross Weight |
13.15kg/29lbs
|
| Net Weight |
11.1kg/24.5lbs
|
| Product Size |
94*30*26cm/37*11.81*10.23in
|
| Package Volume |
95*42*29cm/37.40*16.54*11.42in
|
Product Tips
Notes:
1.Please note that this product is manual available in English, German and French, please contact customer service for more information.
2.Gasoline is prone to oxidation and degradation when stored. Using degraded gasoline will clog the fuel line and cause starting difficulties. If the engine has not been used for more than half a month, please drain the fuel in advance.
3.Please add gear oil to the gears before using the motor and change the gear oil after the break-in period (10 hours).
