2,988.00SEK
125CC 4 Stroke Engine - Dirt Bike Engine, Go Kart ATV, Starter Motor with CDI Transmission for ATV GO Karts
-
Brand:
CNCEST
-
Product Code:
AC-YCZYQ-3679
-
Availability:
Out Of Stock
Free Fast Shipping:
On all orders
Adjustable Speed
Its 4-speed manual transmission provides you with high-precision gear shifting control, so it allows you to easily adapt to various changes. It makes your driving experience more exciting under different road conditions.
Closed Design
The closed design effectively prevents dust, water, oil, etc. from entering the machine, while minimizing the need for daily maintenance as much as possible.
Lubricating Oil Filter
It can help filter solid stains from lubricating oil, largely reducing wear and prolonging the engine service life.
Gearshift Shaft
It can control the vehicle's speed to suit different usage scenarios.
Shockproof Installation Hole
It is used to install shock absorbers to reduce vibration during driving, thereby improving its driving comfort.
Forged Crankshaft
It adopts a high-quality metal design to ensure high safety and stability during operation.
The CDI ignition system (not included) leads to higher energy and ignition efficiency. So you can start the motor engine quickly and safely.
This ATV motor engine boasts a robust 7.64HP horsepower, a displacement of 125cc, and a max rotating speed of 7500RPM, which provides you with strong power and ensures that your drive will be very smooth and powerful.
By adopting an air cooling system, the temperature of the engine can be quickly reduced, effectively preventing overheating and ensuring smooth and long-lasting driving.
This product can be widely used in motorcycles, ATVs, go-karts, tricycles, etc, as long as the crankshaft matches.
Our ATV motor engine is pre-installed and you only need to spend a little time and effort to complete the remaining parts, enjoying a sense of achievement!
The engine is equipped with premium aluminum and cast steel, ensuring superior performance and a longer lifespan and adapting to complex environments and conditions.
.jpg)
Specifications
-
Engine Type:
Single Cylinder, 4 Stroke, Horizontal, Two-stage Transmission
-
Other Features:
3 Forward Gears and 1 Reverse
-
Material:
Aluminium, Cast Steel
-
Engine Cooling Type:
Air Cooling
-
Ignition System:
CDI (Not Included)
-
Start Mode:
Kick-starter; Electric
-
Clutch Type:
Manual Wet Multi-Disc
-
Transmission:
4-speed, Manual Gear Shift
-
Displacement:
125CC
-
Minimum No-load Stable Speed:
1400 (1 ± 10%) R / min
-
Compression Ratio:
8.7
-
Bore Stroke:
54*54mm/2.12*2.12inch
-
Max Power:
5.8Kw/h
-
Max Torque:
8.0N-m
-
Max Rotating Speed:
7500rpm
-
Horsepower:
7.64HP
-
Air Inlet and Exhaust Valve Clearance:
0.05 ~ 0.07 mm (Cold State)
-
Min Fuel Consumption:
≤367g/kW.h
-
Spark Plug:
A7TC
-
Carburetor Type:
PZ19 (Not Included)
-
Min Stable Idle Speed:
1500r/min±150r/min
-
Primary Reduction Ratio:
3.722
-
Transmission Ratio of Each Gear:
First Gear
-
Lubricant Capacity:
900ml/0.23 Gallons
-
Lubricant Type:
SL10W/40 (Not Included)
-
Crankshaft Diameter:
1.5cm/0.59inch
-
Crankshaft Length:
0.4cm/0.15inch
-
Gasoline Type:
≥ 92 #
-
Gross Weight:
19.45kg/42.87lbs
-
Net Weight:
18.15kg/40.01lbs
-
Product Size:
45*30*25cm/17.71*11.81*9.84inch
-
Package Size:
51*39*33.5cm/20.07*15.35*13.18inch

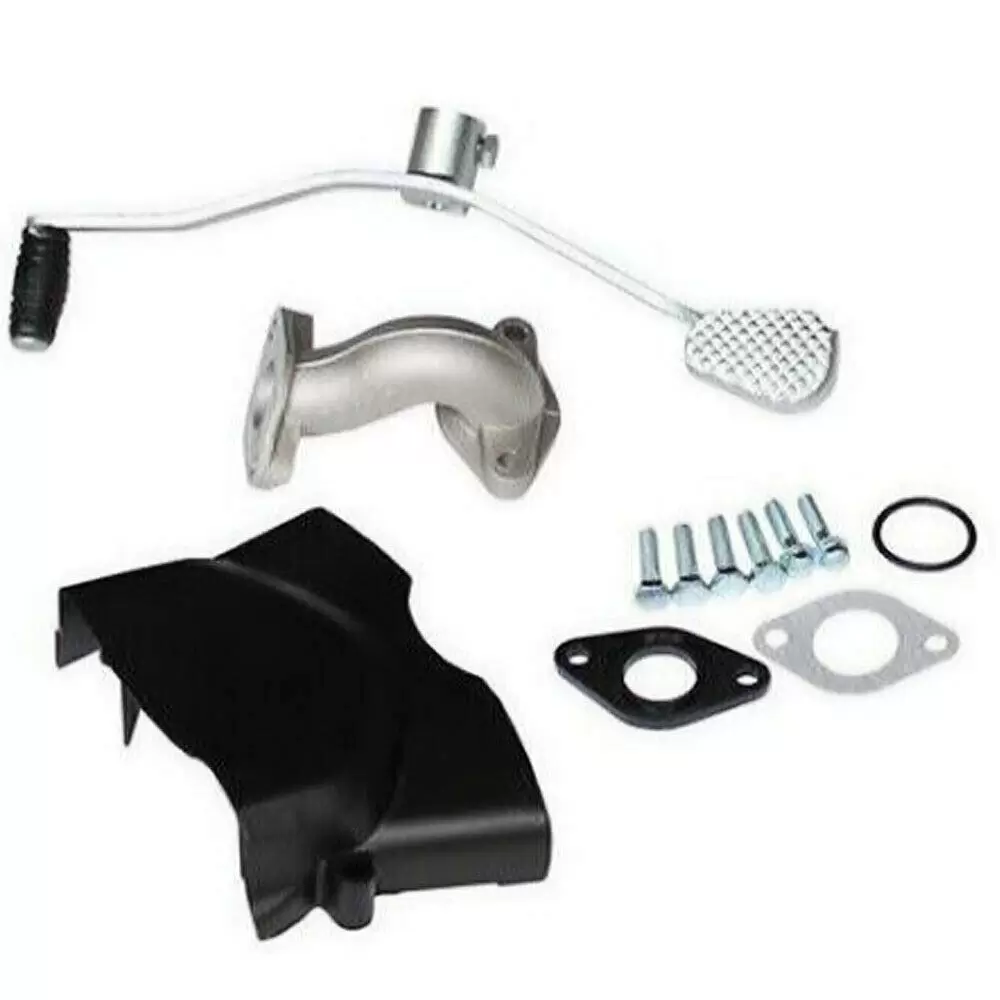

Package Included
-
1*ATV Motor Engine
-
1*Gearshift Lever
-
1*Chain Cover
-
1*Intake Manifold
-
2*Intake Gaskets
-
All Accessories for Assembly
Specifications
| Engine Type |
Single Cylinder, 4 Stroke, Horizontal, Two-stage Transmission
|
| Other Features |
3 Forward Gears and 1 Reverse
|
| Material |
Aluminium, Cast Steel
|
| Engine Cooling Type |
Air Cooling
|
| Ignition System |
CDI (Not Included)
|
| Start Mode |
Kick-starter; Electric
|
| Clutch Type |
Manual Wet Multi-Disc
|
| Transmission |
4-speed, Manual Gear Shift
|
| Displacement |
125CC
|
| Minimum No-load Stable Speed |
1400 (1 ± 10%) R / min
|
| Compression Ratio |
8.7 |
| Bore Stroke |
54*54mm/2.12*2.12inch
|
| Max Power |
5.8Kw/h
|
| Max Torque |
8.0N-m
|
| Max Rotating Speed |
7500rpm
|
| Horsepower |
7.64HP
|
| Air Inlet and Exhaust Valve Clearance |
0.05 ~ 0.07 mm (Cold State)
|
| Min Fuel Consumption |
≤367g/kW.h
|
| Spark Plug |
A7TC
|
| Carburetor Type |
PZ19 (Not Included)
|
| Min Stable Idle Speed |
1500r/min±150r/min
|
| Primary Reduction Ratio |
3.722
|
| Transmission Ratio of Each Gear |
First Gear |
| Lubricant Capacity |
900ml/0.23 Gallons
|
| Lubricant Type |
SL10W/40 (Not Included)
|
| Crankshaft Diameter |
1.5cm/0.59inch
|
| Crankshaft Length |
0.4cm/0.15inch
|
| Gasoline Type |
≥ 92 #
|
| Gross Weight |
19.45kg/42.87lbs
|
| Net Weight |
18.15kg/40.01lbs
|
| Product Size |
45*30*25cm/17.71*11.81*9.84inch
|
| Package Size |
51*39*33.5cm/20.07*15.35*13.18inch |
Product Tips
Notes
1.Professional installation is highly recommended.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
