2,579.88SEK
48V 1000W Electric Brushless Motor Kit, Electric Tricycle Motor Kit, E-Tricycle Brushless Motor
-
Brand:
CNCEST
-
Product Code:
YDFK6T-002100ND
-
Availability:
Out Of Stock
Free Fast Shipping:
On all orders
Build to Last
The product is made of aluminum and copper, which ensures excellent heat dissipation, high strength, and rust resistance, and is not easily deformed, ensuring long-term use.
High Flexibility
The product comes with a three-speed transmission design, and reverse design, allowing you to easily adjust the speed and more flexibly control the tricycle to navigate through city streets.
Excellent Performance
The torque of 3.35 N.m gives this product strong climbing ability, which can adapt to various terrains such as gravel roads and highways, making your travel free.
Power Function
The 1000W high power and 1102.31 lbs load-bearing capacity enable this product to demonstrate excellent performance in practical applications.
Complete Accessories
This set includes a motor, a controller, two handle throttles, a chain, a power lock, two keys, a chain wheel, and other necessary accessories (excluding batteries) to make your installation smoother and more convenient.
With this high-performance and cost-effective product, you can enjoy riding more confidently and happily, and have a better mood.
With the non-slip texture, you can better grip the throttle and use it to change the speed.
They allow you to easily mark the installation location, making installation easier.

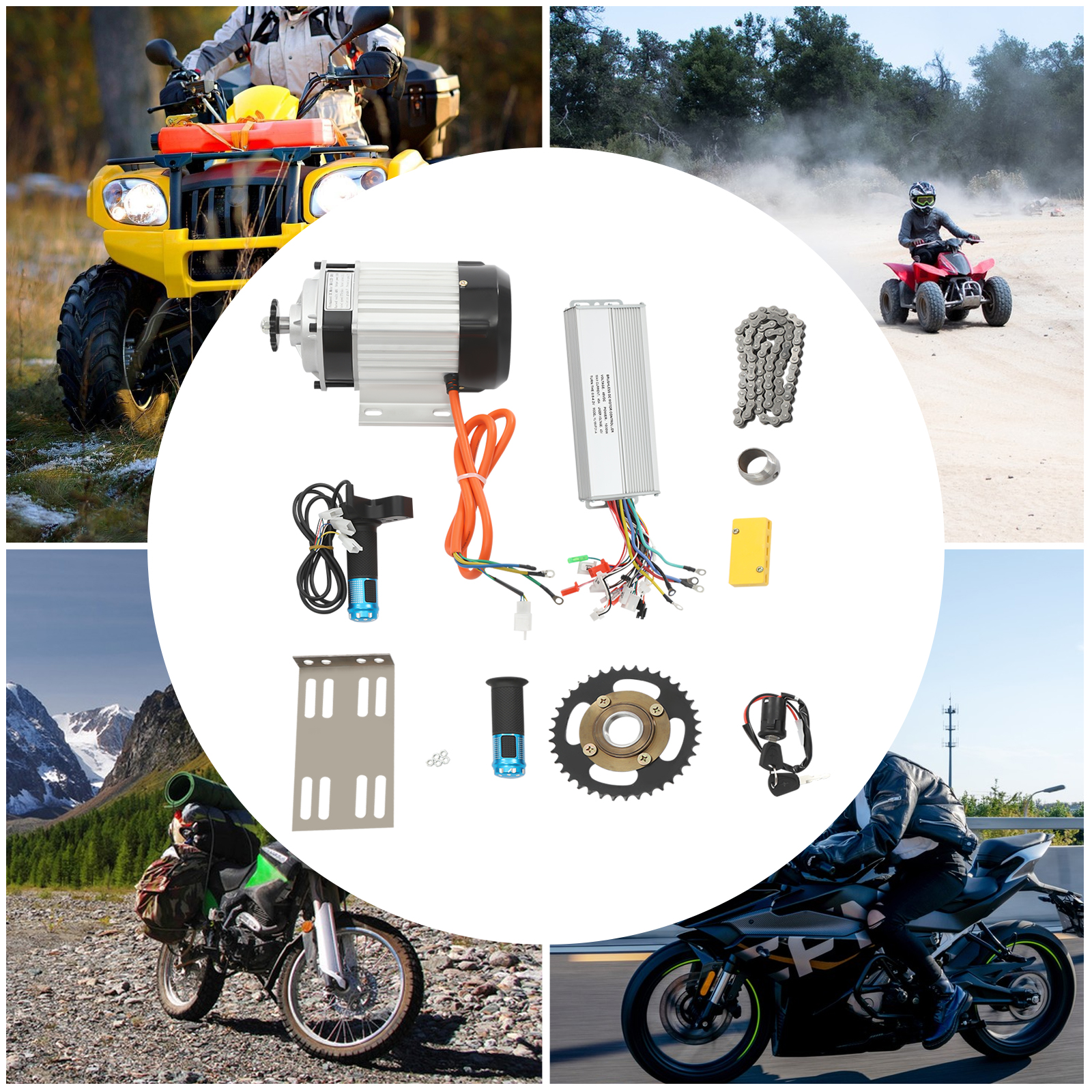

This set of products is suitable for electric tricycles, electric bicycles, electric motorcycles, scooters, and other mechanical equipment.
Specifications
-
Color:
Black, Silver
-
Material:
Aluminum, Copper
-
Max. Load Bearing Capacity:
About 500kg/1102.31lbs
-
Motor Type:
Brushless DC Motor
-
Motor Controller Model:
YL18WF01-A
-
Voltage:
48VDC
-
Power:
1000W
-
Max. Current:
45A
-
Under Voltage:
42V
-
Throttle Voltage:
0.8-4.2V
-
Assembly Required:
Yes
-
Motor Rated Speed:
570r/min
-
Motor Rated Current:
26.2A
-
Motor Insulation Grade:
F
-
Motor Protection Grade:
IP33
-
Torque:
3.35 N.m
-

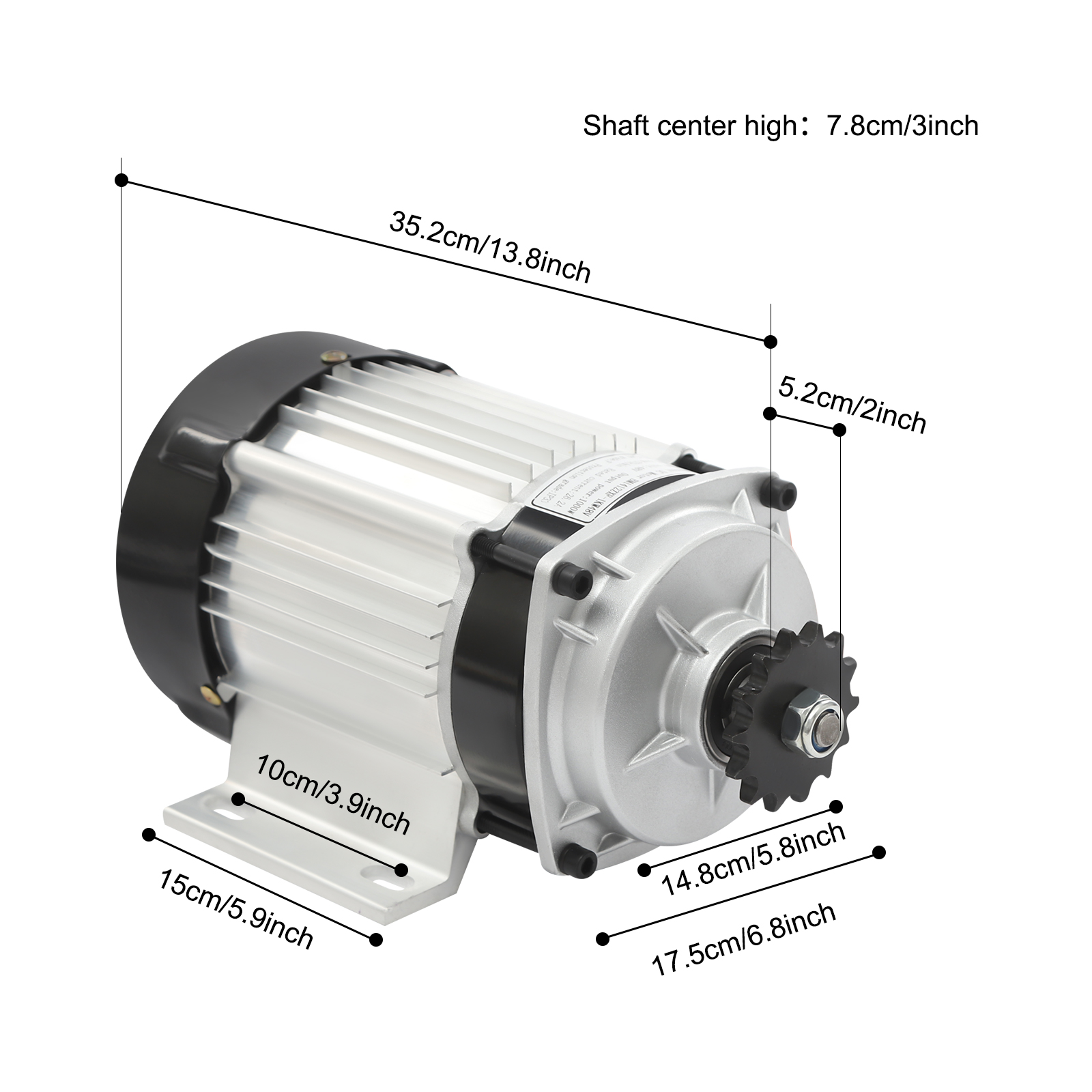

Motor Size(D*L):
14.8*35.2cm/5.8*13.8in
-
Motor Total Width(Including Base):
17.5cm/6.8in
-
Installation Hole Spacing:
10cm/3.9in
-
Base Length:
15cm/5.9in
-
Shaft Size(D*H):
2.2*5.2cm/0.8*2in
-
Shaft End Thread:
M20
-
Shaft Center Height:
7.8cm/3in
-
Package Size:
39*30*22cm/15.35*11.81*8.66in
-
Gross Weight:
11kg/24.25lbs
-
Net Weight:
10.45kg/23.04lbs

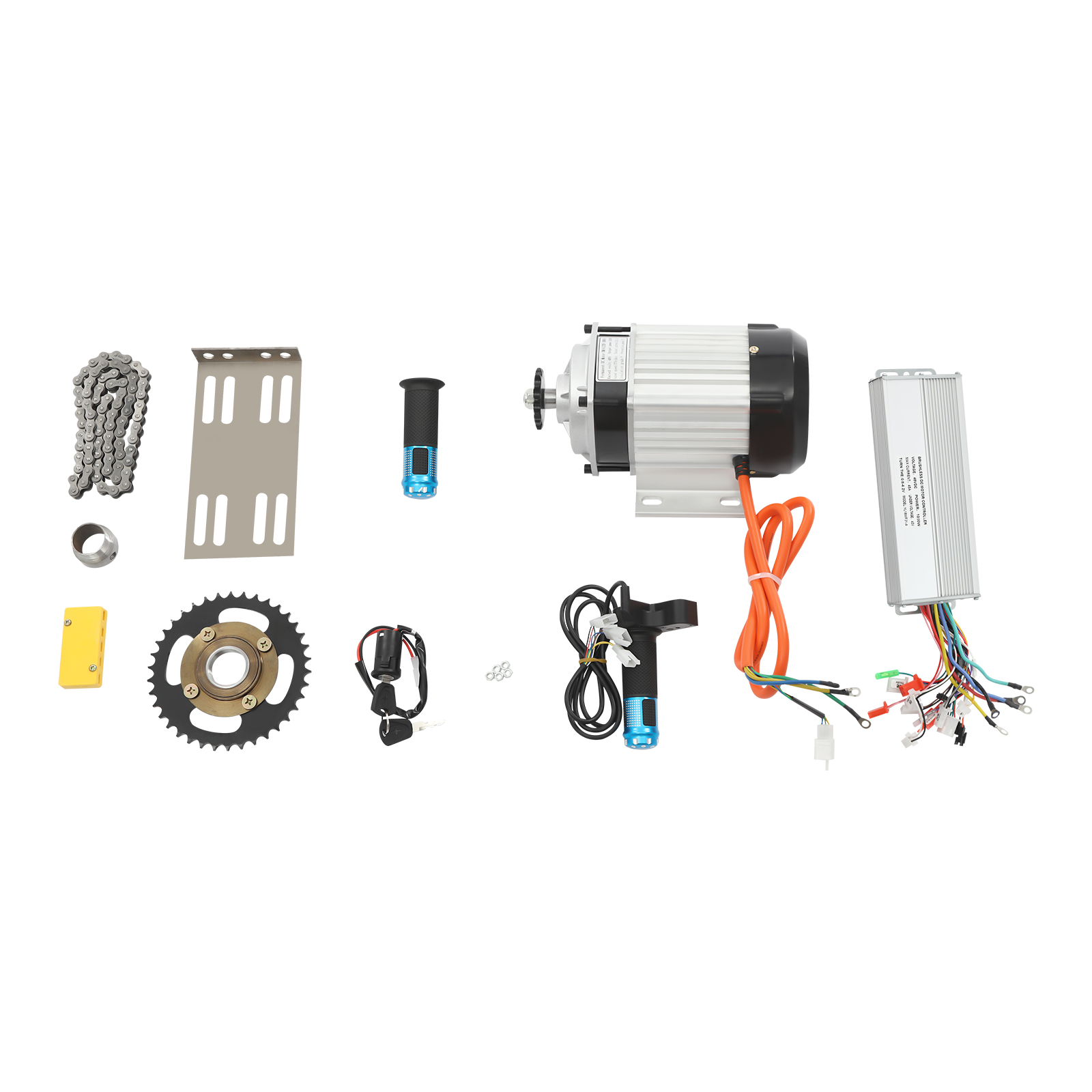

Package Included
-
1* Motor
-
1* Controller
-
2* Handle Throttles
-
1* Chain
-
1* Power Lock
-
2* Keys
-
1* Chain Wheel
-
Other Needed Accessories
Specifications
| Color |
Black, Silver
|
| Material |
Aluminum, Copper
|
| Max. Load Bearing Capacity |
About 500kg/1102.31lbs
|
| Motor Type |
Brushless DC Motor
|
| Motor Controller Model |
YL18WF01-A
|
| Voltage |
48VDC
|
| Power |
1000W
|
| Max. Current |
45A
|
| Under Voltage |
42V
|
| Throttle Voltage |
0.8-4.2V
|
| Assembly Required |
Yes
|
| Motor Rated Speed |
570r/min
|
| Motor Rated Current |
26.2A
|
| Motor Insulation Grade |
F
|
| Motor Protection Grade |
IP33
|
| Torque |
3.35 N.m
|
| Motor Size(D*L) |
14.8*35.2cm/5.8*13.8in
|
| Motor Total Width(Including Base) |
17.5cm/6.8in
|
| Installation Hole Spacing |
10cm/3.9in
|
| Base Length |
15cm/5.9in
|
| Shaft Size(D*H) |
2.2*5.2cm/0.8*2in
|
| Shaft End Thread |
M20
|
| Shaft Center Height |
7.8cm/3in
|
| Package Size |
39*30*22cm/15.35*11.81*8.66in
|
| Gross Weight |
11kg/24.25lbs
|
| Net Weight |
10.45kg/23.04lbs |
Product Tips
Notes
1.Please check the size carefully before ordering.
2.This kit is 48 V, you need four 12 V batteries (lead-acid or lithium), or two 24 V batteries after they are connected together, the recommended capacity is > 20 AH. Please note that this product does not include a battery and battery charger. Please bring your own batteries.
3.Modifying requires a certain level of hands-on ability. If you are unable to modify it, you can take it to a repair shop for the owner to do so.
