- Good Assistant: Compared with traditional hand tapping, our product is electrically driven to make the tiles even and flat, reducing damage to the tiles and improving work efficiency.
- High Performance: Adopting a pure copper motor that can achieve uniform slurry running without an empty drum, and promote the full coordination of air and electricity, and a large suction cup(5.35inch), this machine features high speed(25000rpm), high efficiency, and maximum adsorption force of 176.4 lbs and can realize continuous use with less noise(maximum 50db), making it suitable for moving and installing floor tiles and wall tiles.
- Safety Guard: The alloy head makes it possible to provide a stronger and more sustained vibration force during use, and it also effectively dissipates heat to prevent overheating and extend its service life.
- Saving Time and Effort: It is more efficient with two 15000mAh large batteries which can be used continuously over 8 hours(each battery) after a full charge(2-3 hours). The cordless design enables you to use this machine anytime and anywhere, which reduces usage restrictions and saves time and effort.
- Adjustable Speed: You can adjust the speed within 12 gears according to the size of the tile(0-47.2 inches) and the thickness of the plaster by pressing the buttons, which is more convenient and simple, thereby helping you better complete the tiling work.
- Lightweight and Portable: The 6.83 lbs net weight and the storage box with handle and buckle designs allow you to carry and store this product and prevent item loss.
- Effortless Cleaning: The smooth surface and simple structure make it convenient for you to clean with a dry towel.
- Guaranteed Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Details

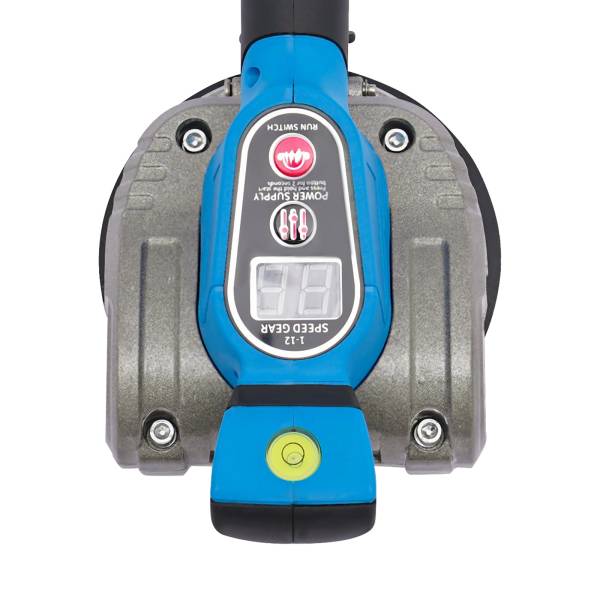

Gradienter: When the bubble is in the center of the black coil, the machine is in a horizontal state, making it easier for you to operate.
Digital Display Screen: The large display screen can timely display gears, which is convenient to operate and check the states.

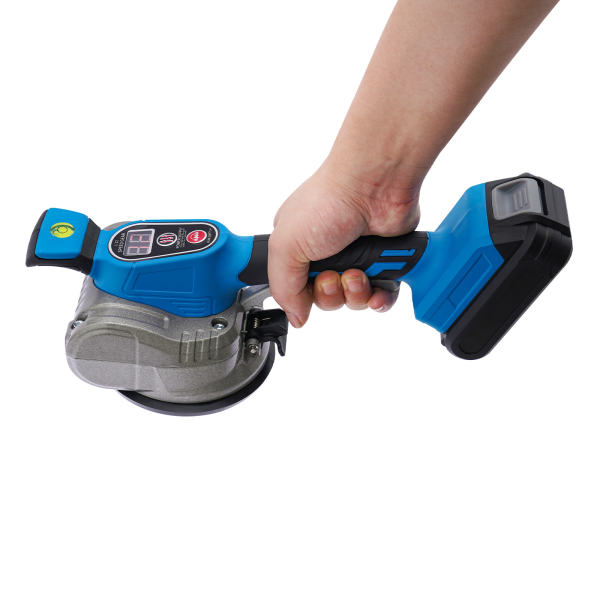

Ergonomic Handles: The ergonomic handle can relieve vibration and give you a comfortable, non-slip grip to reduce hand fatigue during prolonged use. Moreover, the widened auxiliary handle facilitates correction and fine adjustment, making it easier to push the ceramic tiles together.
Lock Hook: Thanks to the lock design, the tiles will be firmly absorbed and not easily fall, which can free your hands from holding the handle all the time, so you can work more easily for a long time.
How to Operate
1.Insert the battery(included) and press the power button.
2.Adjust the vibration gear.
3.Lift the handle to suck and move the tiles.
4.Lift the lock hook and free your hands.
5.Place the suction cup flat on the ceramic tile and pull up the handle to absorb the tile.
6.After adsorbing the tile, the edges and corners can be aligned by pushing and pulling the machine left and right.
7.It only takes a few seconds to compact the tiles.

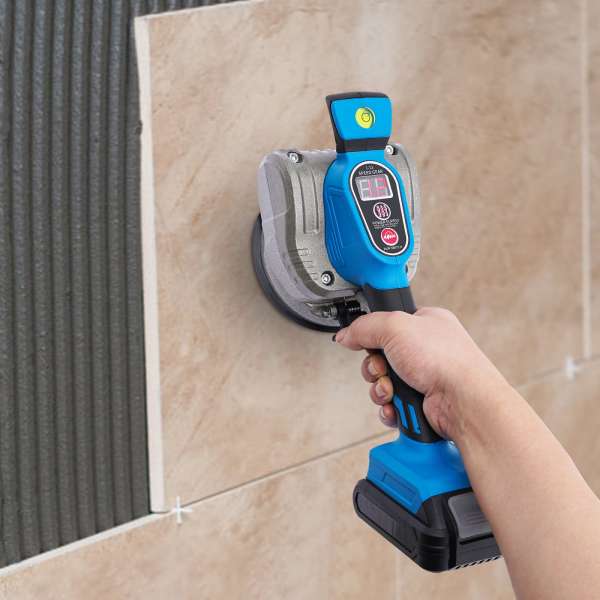

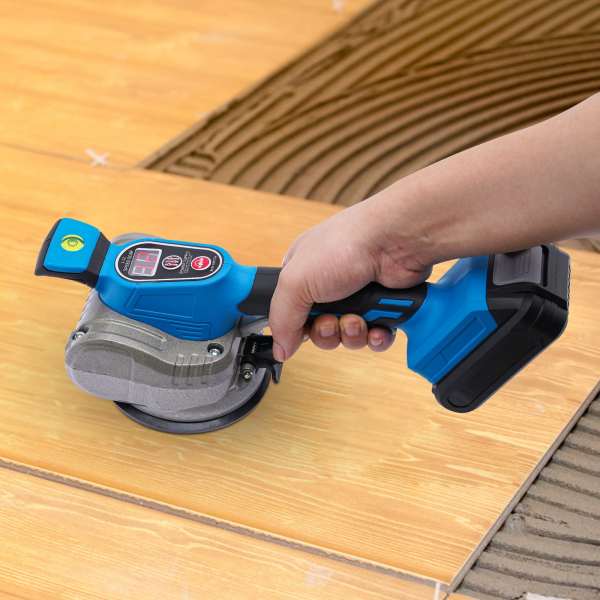

Application
This product can be widely used at homes, hotels, restaurants, clubhouses, decoration industries, etc. for laying various types of tiles(0-47.2inch), such as wall tiles, floor tiles, and TV walls.
Specification
Color: Blue
Material: ABS, Aluminum Alloy
Surface Recommendation: Tile
Power Source: Battery Powered
Plug Type: AU Standard
Motor Type: Pure Copper Motor
Battery Type: 2* 21V 15000mAh Lithium Batteries(Included)
Each Battery Endurance: 4 Hours
Each Battery Charging: 2-3 Hours
Number of Gears: 12
Rotational Speed: 24000r/min
Adsorption Power: 80kg/176.4 lbs
Charging Line Length: 1m/3.28in
Noise Lever(Max. Gear): 50dB
Suction Cup Diameter: 136mm/5.35inch
Applicable Tiles: 0-120cm/0-47.2inch

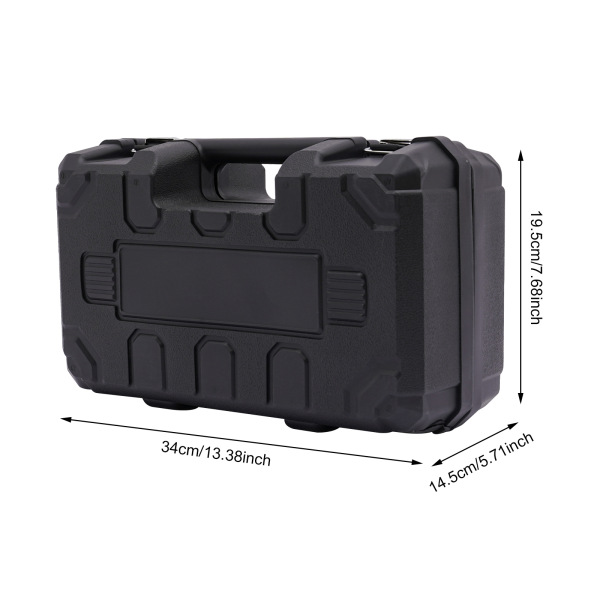

Storage Box Size: 34*14.5*19.5cm/13.38*5.71*7.68inch
Package Size: 34*21*14cm/13.38*8.27*5.51inch
Net Weight: 3.1kg/ 6.83lbs
Gross Weight: 2.8kg/ 6.2lbs
Package Included
1 * Tile Vibration Machine
2 * Lithium Batteries
1 * Charger
1 * English Manual
1 * Storage Box
Notes
1.Please read the operating manual completely before use, and pay particular attention to the safety instructions included. Please beware of potential safety hazards in electricity use, take necessary personal protective measures, and keep this product out of reach of children.
2.Please use the original factory special charger to charge. If not used for a long time, please charge the batteries every three months to ensure extended battery life.
3.The idle operation of this machine is prohibited. Please store the machine in a dry place to avoid contact with liquids. Please remove the dust from the suction cup in time during use, and cautiously remove the suction cup from the tile surface, as it may leave a mark or residue behind.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
