AU $1,219.99
AU $1,230.00

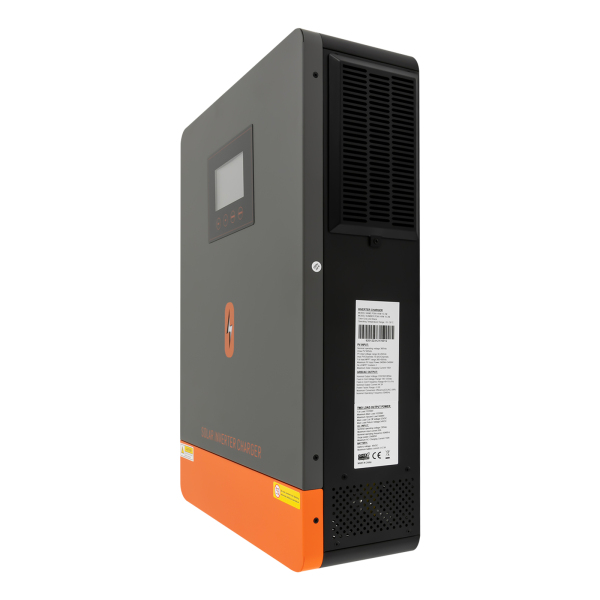

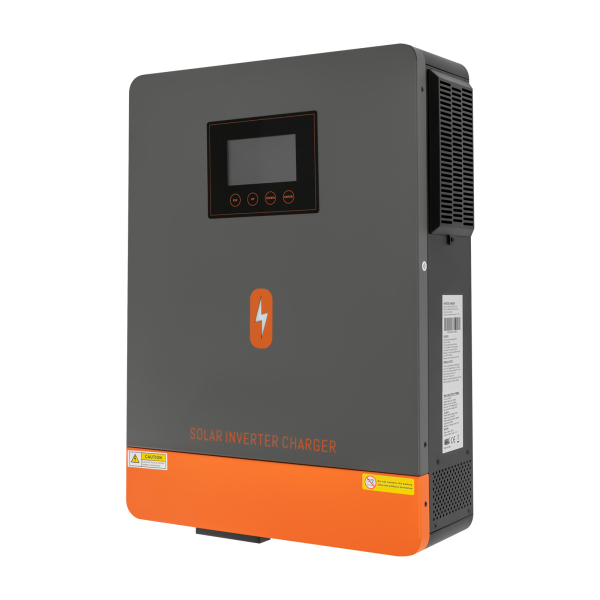

10.2 KW Solar Hybrid Inverter Dual MPPT Solar Charge Controller Solar Inverter Charger 3 Charging Modes for dry Batteries Nickel-cadmium Batteries
-
Brand:
CNCEST
-
Product Code:
YLLN9V-000300N2
-
Availability:
In Stock
Free Fast Shipping:
On all orders
High-quality Material
It is made of aluminum alloy and PVC, which is durable and less prone to rust and corrosion, ensuring long service life.
Powerful Output
The full load power of 10200W can continuously supply power to most electrical devices, and charge for batteries quickly, making the process more effective.
High Efficiency
Dual MPPT enables this product to be connected to two-channel solar panels, which can fully utilize solar cells to reach their maximum power point, with a conversion efficiency of up to 98%, making battery charging more efficient.
Thoughtful Design
It comes with a built-in anti-dusk kit that can function properly in harsh environments. It also has the function of running without batteries and automatically restarting when AC power is restored, making the operation simpler.
High Security

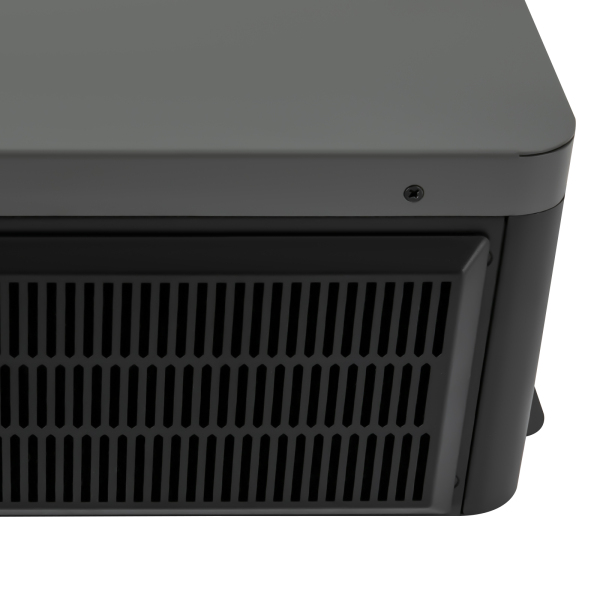

The built-in cooling fan and multiple heat-sink holes can help the product effectively dissipate heat, and it also has protection against overload, overheating, short circuits, etc., making your circuit and use safer.
Hassle-free Use
With the clear display screen, multiple function keys, and English manual, you can use this product more easily. The product also has a cold start function, which can further reduce energy consumption.
Practical Bracket
The bracket with pre-drilled holes allows for easy installation.
Indicator Lights
The different states of the indicator lights can let you know the status of the product for safer use.
3 Charging Modes
You can choose from the 3 charging modes: solar priority, solar & mains (default), solar only charging, and the two output modes: inverter and mains, to meet different applications.
Application
It can apply to 48 V lead-acid batteries (sealed, AGM, gel, rich liquid), lithium batteries (must be set by "custom"), dry batteries, nickel-cadmium batteries, water batteries, and deep cycle batteries.
Specifications
-
Model:
POW-HVM 10.2M
-
Material:
Aluminum Alloy, PVC
-
Color:
Grey + Orange
-
Shape:
Rectangular
-
Style:
Modern
-
Heat Dissipation:
Built-In Fan
-
Control Method:
Touch Screen/Buttons
-
Display Type:
LED
-
Charging Mode:
Solar Priority, Solar & Mains (Default), Solar Only
-
Output Modes:
Inverter, Mains Power
-
Communication Interface:
RS232, RS485
-
Working Temperature:
-10℃~50℃/14℉~122℉
-
Nominal Operating Voltage:
360V DC
-
PV Max. Voltage:
500V DC
-
PV Input Voltage:
90-450V DC
-
Max. PV/Channels:
18.0A/2Channels
-
Full Load MPPT Range:
360-450V DC
-
Max. PV Input Power:
5400W+5400W
-
No. of MPPT Trackers:
2
-
Max. Solar Charging Current:
160A
-
Nominal Output Voltage:
220/230/240V AC
-
Feed-in Grid Voltage Range:
195~253V AC
-
Feed-in Grid Frequency Range:
49-51±1Hz
-
Nominal Output Current:
44.3A
-
Power Factor Range:
>0.99
-
Max. Conversion Efficiency (DC/AC):
98%
-
Nominal Operating Frequency:
50/60Hz
-
Full Load:
10200W
-
Max. Main Load:
10200W
-
Max. Second Load:
3400W
-
Main Load Cut Off Voltage:
52V DC
-
Main Load Return Voltage:
54V DC
-
Nominal Operating Voltage:
230V AC
-
Max. Input Current:
50A
-
Nominal Operating Frequency:
50/60Hz
-
Surge Power:
20400VA
-
Max. AC Charging Current:
140A
-
Battery Voltage:
48V DC
-
Max. Battery Current:
212.5A
-

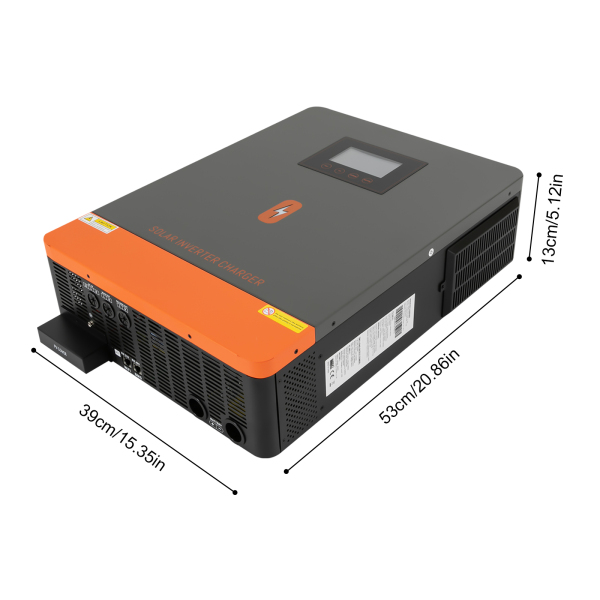

Product Size:
39*13*53cm/15.35*5.12*20.86in
-
Package Size:
59*41*21cm/23.23*16.14*8.27in
-
Gross Weight:
17kg/37.48lbs
Package Included:
-
1* Solar Inverter Charger
-
1* English Manual
-
Other Accessories for Using
Specifications
| Model |
POW-HVM 10.2M
|
| Material |
Aluminum Alloy, PVC
|
| Color |
Grey + Orange
|
| Shape |
Rectangular
|
| Style |
Modern
|
| Heat Dissipation |
Built-In Fan
|
| Control Method |
Touch Screen/Buttons
|
| Display Type |
LED
|
| Charging Mode |
Solar Priority, Solar & Mains (Default), Solar Only
|
| Output Modes |
Inverter, Mains Power
|
| Communication Interface |
RS232, RS485
|
| Working Temperature |
-10℃~50℃/14℉~122℉
|
| Nominal Operating Voltage |
360V DC
|
| PV Max. Voltage |
500V DC
|
| PV Input Voltage |
90-450V DC
|
| Max. PV/Channels |
18.0A/2Channels
|
| Full Load MPPT Range |
360-450V DC
|
| Max. PV Input Power |
5400W+5400W
|
| No. of MPPT Trackers |
2
|
| Max. Solar Charging Current |
160A
|
| Nominal Output Voltage |
220/230/240V AC
|
| Feed-in Grid Voltage Range |
195~253V AC
|
| Feed-in Grid Frequency Range |
49-51±1Hz
|
| Nominal Output Current |
44.3A
|
| Power Factor Range |
>0.99
|
| Max. Conversion Efficiency (DC/AC) |
98%
|
| Nominal Operating Frequency |
50/60Hz
|
| Full Load |
10200W
|
| Max. Main Load |
10200W
|
| Max. Second Load |
3400W
|
| Main Load Cut Off Voltage |
52V DC
|
| Main Load Return Voltage |
54V DC
|
| Nominal Operating Voltage |
230V AC
|
| Max. Input Current |
50A
|
| Nominal Operating Frequency |
50/60Hz
|
| Surge Power |
20400VA
|
| Max. AC Charging Current |
140A
|
| Battery Voltage |
48V DC
|
| Max. Battery Current |
212.5A
|
| Product Size |
39*13*53cm/15.35*5.12*20.86in
|
| Package Size |
59*41*21cm/23.23*16.14*8.27in
|
| Gross Weight |
17kg/37.48lbs |
Notes:
Notes:
1.Please select the appropriate inverter model according to the actual equipment power, current, and load characteristics.
2.Please do not use inverters in illegal use scenarios such as electric fish, otherwise, it will violate relevant laws and regulations and pose a huge risk to personal safety.
3.Before using the device, please carefully review all guidance and warning signs on the device, battery, and all relevant sections of the manual.
