AU $100.00

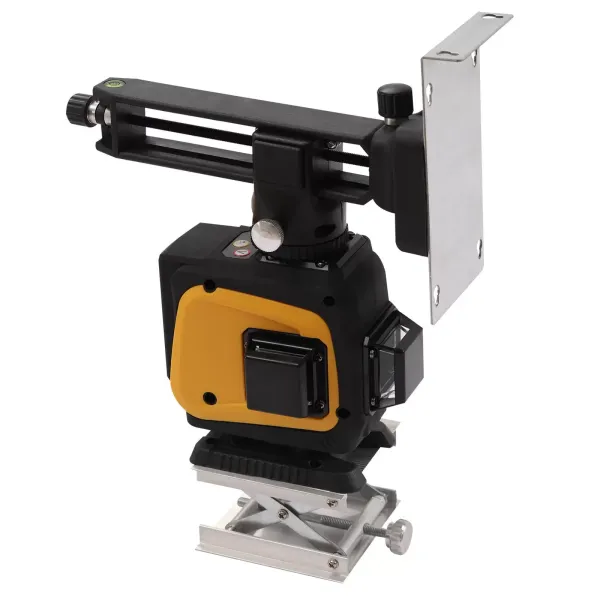

3D Tile Laser Level Cross Line Floor Wall Ceiling Alignment Tool Self-Leveling Green Light
-
Brand:
CNCEST
-
Product Code:
JZBE7YA2AUWJ8
-
Availability:
Out Of Stock
Free Fast Shipping:
On all orders
Fast and Adequate Layout

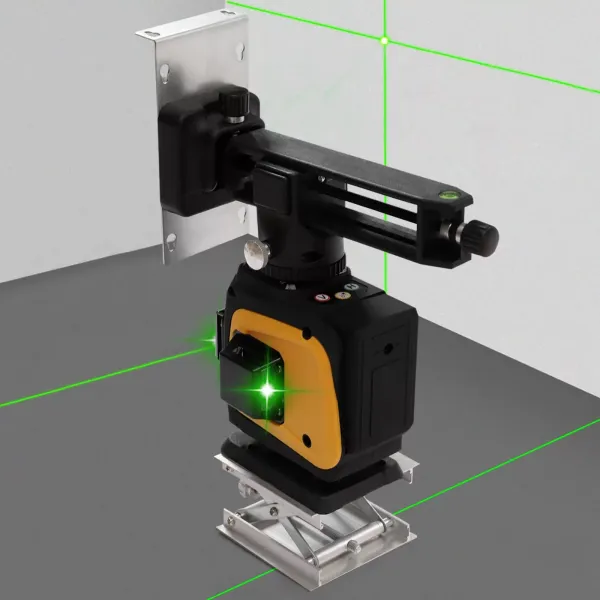

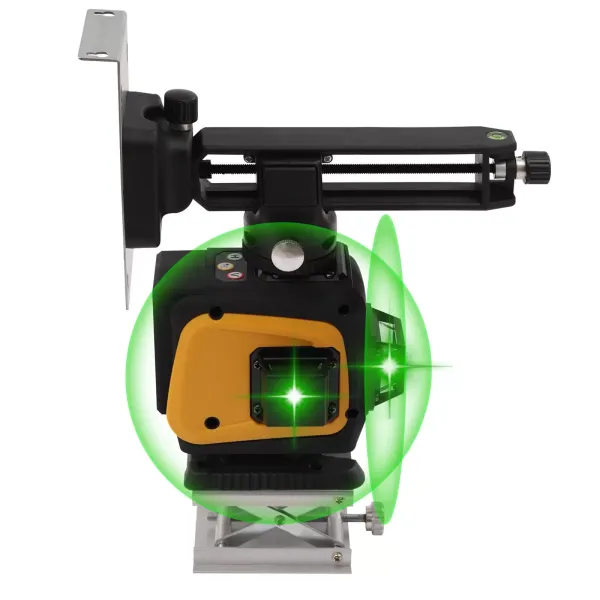

It uses a 360° horizontal plane and two 360° vertical planes enabling the user to cover the floor, walls, and ceiling around the room. The two vertical lines intersect at a 90° angle, allowing the user to quickly and intuitively complete a square layout.
High Brightness Beam
This laser level uses the green laser beam that is four times brighter than the standard red beam and has a working range of up to 33ft with an accuracy of ±0.04'' at 26ft.
Close to the Floor/Wall
It can achieve 7mm/0.3inch to the wall and 6mm/0.2inch to the floor, allowing you to work at close range and solve the drawbacks of traditional level.
Excellent Performance
It has an intelligent pendulum system, tilt angle ≤3°, and the green laser level will be leveled automatically, otherwise it will sound an alarm continuously. Once the pendulum is locked, it will switch to manual mode, locking the lines for use at any angle.
Waterproof and Dustproof
It has an IP54 waterproof/dustproof rating to ensure your normal and stable work in a complex working environment.

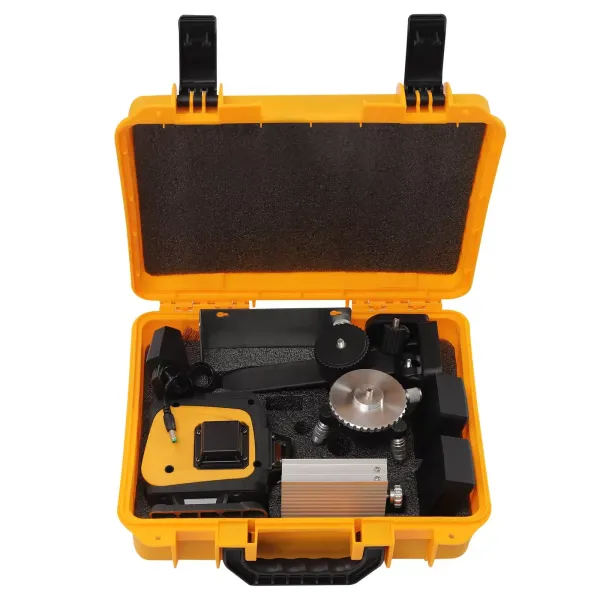

Toolbox
Each component is packed in a customized toolbox, which not only effectively prevents accidents during transportation but also makes it easy for you to carry.
360° Rotating Base
It is equipped with a 360° freely rotating base, which can be rotated to the desired angle to make your use more convenient.
Coating
Professional coating on the laser projector provides clear light transmission while reducing reflections.
Application
It is widely used for laying tiles, installing photos, doors, window or furniture carpentry, hanging wallpaper, concrete, construction, cabinets, etc.
Specifications
-
Material:
Aluminum Alloy + Plastic
-
Color:
Yellow + Black
-
Laser Color:
Green
-
Surface Treatment:
Coating
-
Style:
Portable, Laser, Standard, Magnetic
-
Operation Mode:
Manual / Remote Control
-
Laser Safety Class:
Class II
-
Plug Type:
AUS
-
Voltage:
110-240v, 50-60Hz
-
Laser Wavelength:
505-520nm
-
Number of Lines & Range:
12 lines, 3× 360°
-
Horizontal/Vertical Accuracy:
±1mm at 8m/±1/25'' at 26ft
-
Self-leveling Range:
≤3°
-
Leveling Time:
3s
-
Waterproof, Dustproof Rating:
IP54
-
Power Source:
2*3.7v 4000mAh Lithium Batteries(Included)
-
Operating Time:
8 Hours
-
Working Distance (Line):
10m/33ft
-
Mount Thread Size:
5/8"
-
Operation Temperature Range:
14~113℉ (-10℃~45℃)
-
Package Size:
33.5*28.5*15cm/13*11*6inch
-
Toolbox Size:
28*25*12cm = 11*10*4.7inch
-
Gross Weight:
3kg/6.5lbs
-
Net Weight:
2.4kg/5.3lbs

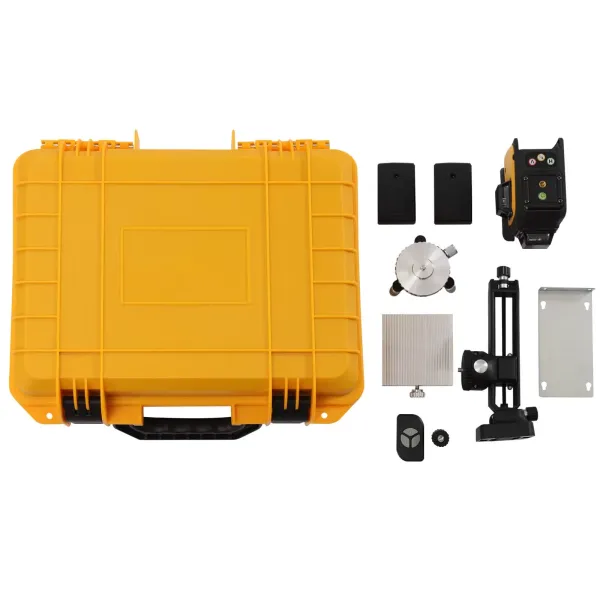

Package Included:
-
1* Laser Level
-
2*Removable Lithium Batteries
-
1*Magnetic Stand
-
1*360° Free Rotation Base
-
1*Laser Target Plate
-
1*Lift Table
-
1*Conversion Head
-
1*Toolbox
-
1*Remote Control
-
1*English User Manual
Specifications
| Material |
Aluminum Alloy + Plastic |
| Color |
Yellow + Black |
| Laser Color |
Green |
| Surface Treatment |
Coating |
| Style |
Portable, Laser, Standard, Magnetic |
| Operation Mode |
Manual / Remote Control |
| Laser Safety Class |
Class II |
| Plug Type |
AUS |
| Voltage |
110-240v, 50-60Hz |
| Laser Wavelength |
505-520nm |
| Number of Lines & Range |
12 lines, 3× 360° |
| Horizontal/Vertical Accuracy |
±1mm at 8m/±1/25'' at 26ft |
| Self-leveling Range |
≤3° |
| Leveling Time |
3s |
| Waterproof, Dustproof Rating |
IP54 |
| Power Source |
2*3.7v 4000mAh Lithium Batteries(Included) |
| Operating Time |
8 Hours |
| Working Distance (Line) |
10m/33ft |
| Mount Thread Size |
5/8" |
| Operation Temperature Range |
14~113℉ (-10℃~45℃) |
| Package Size |
33.5*28.5*15cm/13*11*6inch |
| Toolbox Size |
28*25*12cm = 11*10*4.7inch |
| Gross Weight |
3kg/6.5lbs |
| Net Weight |
2.4kg/5.3lbs |
Notes:
Notes:
1. Please avoid exposing your eyes directly to the laser beam; a healthier observation is to use laser glasses.
2. Please note that the intensity of the laser is affected by bright light, making observation difficult. The laser will become clear at night or in darker conditions.
3. Please do not shake! The left and right impact of the pendulum can affect the accuracy of the laser measurement.
